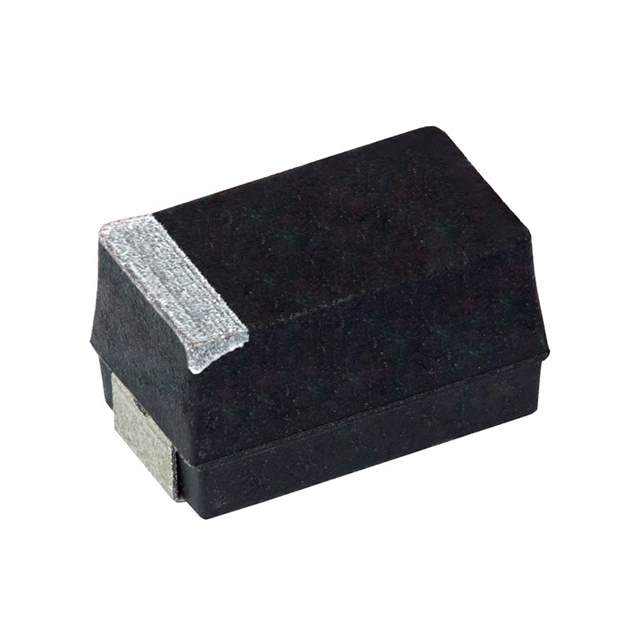

Same model may have multiple batches, images only for reference.

593D476X0020D2TE3

Name: 593D476X0020D2TE3
Brand: Vishay
SKU: 985825
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	593D476X0020D2TE3
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	Cap Tant Solid 47uF 6.3V D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.22 Ohm 125°C T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Capacitance	47 µF
Mounting	SMD (SMT)
Case / Package	2917
Case Code (Imperial)	2917
Case / Package	7343
Depth	4.3 mm
Dissipation Factor	6 %
ESR (Equivalent Series Resistance)	200 mΩ
Features	General Purpose
Height	2.8 mm
Height - Seated (Max)	3.0988 mm
Lead Free	Yes
Length	7.3 mm
Maximum Operating Temperature	125 °C
Min Operating Temperature	-55 °C
Mount	Surface Mount
Polarity	Polar
Radiation Hardening	No
RoHS	Compliant
Termination	SMD/SMT
Tolerance	20 %
Voltage Rating	20 V
Voltage Rating (DC)	2 V
Width	4.2926 mm
Win Source Part Number	985825-593D476X0020D2TE3
Categories	Tantalum Capacitors
Manufacturer	Vishay
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 593D476X0020D2TE3 CAD Model

Description

The 593D476X0020D2TE3 is a tantalum capacitor manufactured by Vishay.

Capacitance: 47 µF
Voltage Rating: 20 V
Tolerance: 20%
ESR: 200 mΩ
Polarity: Polar
Dissipation Factor: 6%
Height: 2.8 mm
Width: 4.2926 mm
Length: 7.3 mm
Maximum Operating Temperature: 125°C
Minimum Operating Temperature: -55°C
Case/Package: 2917 and 7343
Mounting: Surface mount
RoHS Compliant: Yes
Lead-Free: Yes
