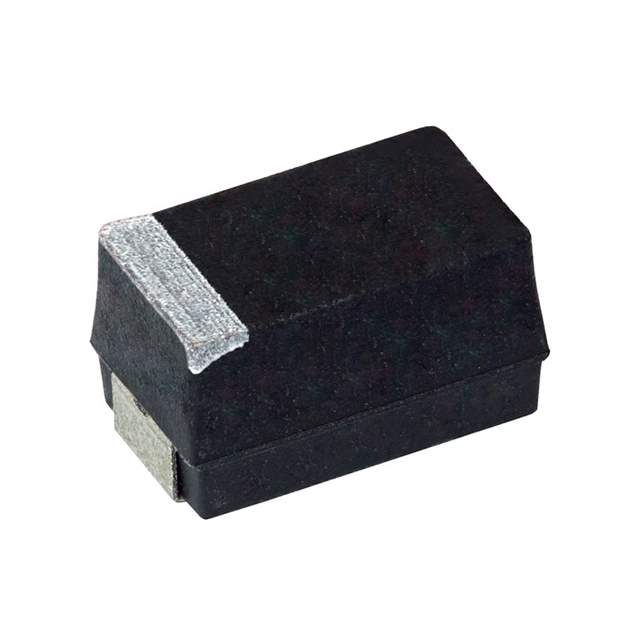

Same model may have multiple batches, images only for reference.

593D226X9020C2TE3

Name: 593D226X9020C2TE3
Brand: Vishay
SKU: 1039369
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	593D226X9020C2TE3
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 22UF 10% 20V 2312 / 22 µF Molded Tantalum Capacitors 20 V 2312 (6032 Metric) 375mOhm
Datasheet	593D226X9020C2TE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum Capacitors
Mfr	Vishay Sprague
Series	TANTAMOUNT®, 593D
Package	Tape & Reel
Capacitance	22 µF
Tolerance	±10%
Voltage - Rated	20 V
Type	Molded
ESR (Equivalent Series Resistance)	375mOhm
Temperature Range - Operating	-55°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	2312 (6032 Metric)
Dimension	0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max)	0.110" (2.79mm)
Manufacturer Size Code	C
Features	General Purpose
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Other Names	718-593D226X9020C2TE3DKR,718-593D226X9020C2TE3CT,593D226X9020C2TE3-ND,718-593D226X9020C2TE3TR
Standard Package	500
Win Source Part Number	1039369-593D226X9020C2TE3
Ultra Librarian 3D Model	Ultra Librarian 593D226X9020C2TE3 CAD Model

Alternative Products

Description

The TANTAMOUNT® 593D is a molded tantalum capacitor with a capacitance of 22µF and a voltage rating of 20V manufactured by Vishay.

Capacitance: 22µF
Voltage Rating: 20V
Tolerance: ±10%
ESR: 375mOhm
Package: 2312 (6032 Metric)
Temperature Range: -55°C to 125°C
Packaging: Tape and reel with 500 pieces per package
