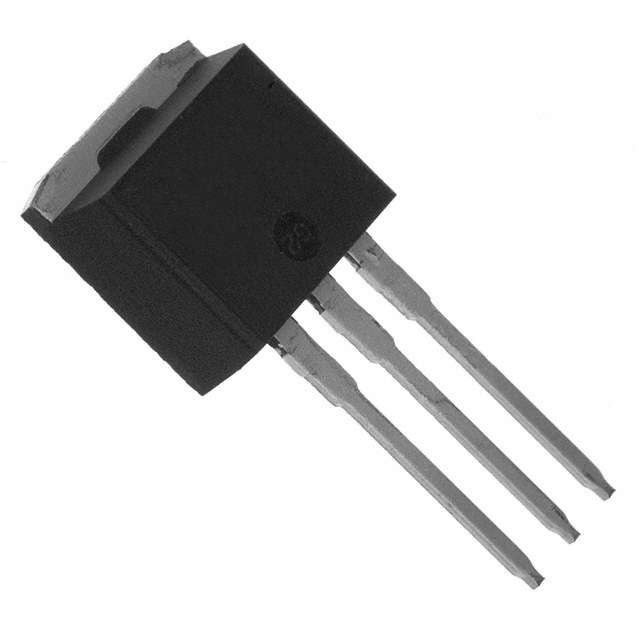

The 40CTQ045-1PBF is a dual common cathode Schottky Rectifier from Vishay, designed for high-frequency switching power supplies and other applications requiring efficient rectification with minimal power loss. It offers a compact solution where space is a constraint, and its low forward voltage drop contributes significantly to enhanced system efficiency.

Applications:

• Output rectification in switching power supplies
• Freewheeling diode in DC-DC converters
• Polarity protection
• High-frequency inverters
• Reverse battery protection

Features:

• Low forward voltage drop
• High surge current capability
• High-frequency operation
• RoHS compliant
• Dual diode configuration

Benefits:

• Increased power efficiency, reducing heat generation
• Enhanced system reliability due to robust design
• Compact design ideal for space-constrained applications
• Environmentally friendly due to RoHS compliance
• Simplified design and reduced component count due to dual diode configuration

Additional Details:

The 40CTQ045-1PBF features a maximum repetitive peak reverse voltage of 45V and a forward current of 20A per diode (40A total). It operates within a temperature range of -55°C to +150°C. The device is available in a TO-220AB package. The Schottky barrier technology ensures minimal switching losses and fast recovery times, making it suitable for high-frequency applications. The high surge current capability provides added protection against transient voltage spikes, ensuring reliable performance under varying operating conditions. Its design is optimized for efficient thermal management, allowing for stable operation even at high power levels.
