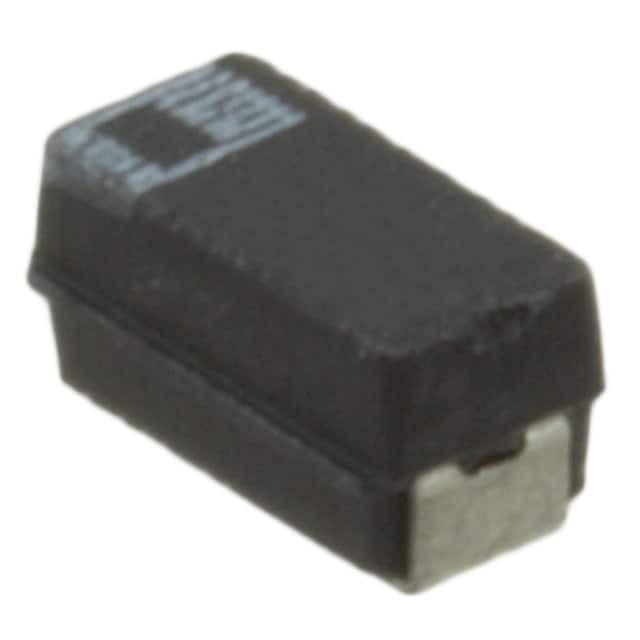

Same model may have multiple batches, images only for reference.
293D475X0020A2TE3
Same model may have multiple batches, images only for reference.

293D475X0020A2TE3

Part No 293D475X0020A2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 4.7UF 20% 20V 1206
Datasheet
293D475X0020A2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr Vishay
Series TANTAMOUNT®, 293D
Package Tape & Reel
Product Status Active
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 20 V
Type Molded
ESR (Equivalent Series Resistance) 5Ohm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.071" (1.80mm)
Manufacturer Size Code A
Features General Purpose
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 854918-293D475X0020A2TE3
Ultra Librarian 3D Model Ultra Librarian 293D475X0020A2TE3 CAD Model

Description

The 854918-293D475X0020A2TE3 is a tantalum capacitor from Vishay.

  • Series: TANTAMOUNT® 293D
  • Type: Molded
  • Capacitance: 4.7µF
  • Tolerance: ±20%
  • Voltage Rating: 20V
  • ESR: 5Ohm
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Seated Height: 0.071" (1.80mm)
  • Package: 1206 (3216 Metric)
  • Mounting: Surface Mountable
  • Temperature Range: -55°C to 125°C
  • Status: Active
  • REACH: Unaffected
  • Application: General-Purpose
