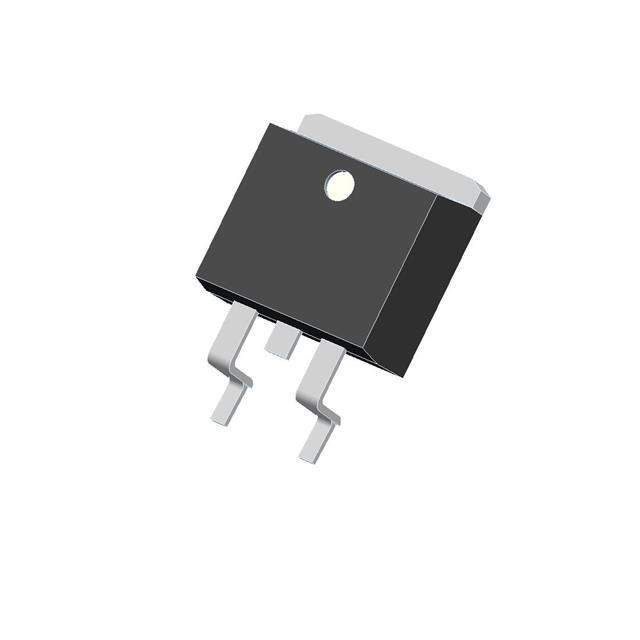

20CTQ045S Real Image
Same model may have multiple batches, images only for reference.

20CTQ045S

Part No 20CTQ045S
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE ARRAY SCHOTTKY 45V D2PAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Maximum) at If 640mV at 10A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 2mA at 45V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style SMD
Manufacturer Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Supplier Device Package D2PAK
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1122912-20CTQ045S
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 20CTQ045S CAD Model

Description

The Vishay Semiconductor Diodes Division 20CTQ045S is a fast recovery Schottky diode with a maximum DC reverse voltage of 45V and average rectified current of 10A per diode.

  • DC Reverse Voltage: 45V (max)
  • Average Rectified Current: 10A per diode
  • Configuration: 1 pair common cathode
  • Package: D2PAK (2 Leads + Tab)
  • Category: Discrete Semiconductor Products
  • Status: obsolete
  • Forward Voltage: 640mV @ 10A
  • Reverse Leakage Current: 2mA @ 45V
  • Operating Temperature: -55°C to 175°C
  • Supply and Demand Status: limited
