Same model may have multiple batches, images only for reference.

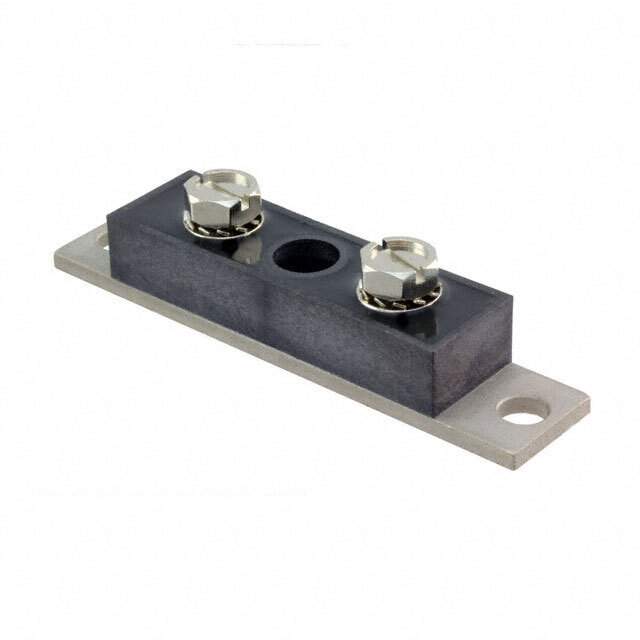

203CNQ100 Real Image
Same model may have multiple batches, images only for reference.

203CNQ100

Part No 203CNQ100
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE MODULE 100V 100A TO244AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 100A
Voltage - Forward (Vf) (Maximum) at If 860mV at 100A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 3mA at 100V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Chassis Mount
Manufacturer Package TO-244AB
Supplier Device Package TO-244AB
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1122876-203CNQ100
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 203CNQ100 CAD Model

Description

The Vishay Semiconductor Diodes Division 203CNQ100 is a fast recovery diode with a current rating of 100A per diode. It

  • Diode Type: Schottky
  • Mounting Type: Chassis Mount
  • Voltage: 100V DC Reverse
  • Forward Voltage: 860mV @ 100A
  • Diode Configuration: 1 Pair Common Cathode
  • Current Reverse Leakage: 3mA @ 100V
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Manufacturer: Vishay Semiconductor Diodes Division
