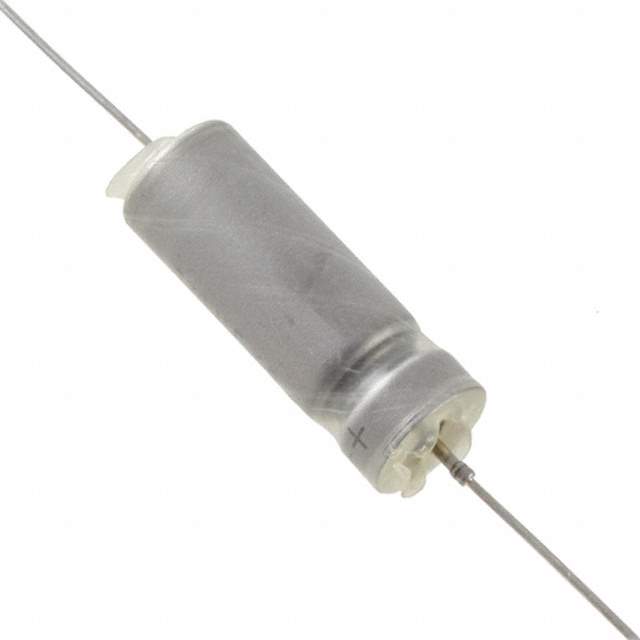

135D826X9125K6

Part No 135D826X9125K6
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 82UF 125V 10% AXIAL
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay Sprague
Series 135D
Packaging Tray
Capacitance 82μF
Tolerance ±10%
Voltage Rating DC 125V
Type Hermetically Sealed
ESR (Equivalent Series Resistance) 2.8 Ohm
Operating Temperature Range -55°C ~ 200°C
Mounting Style Through Hole
Package Axial
Dimension 0.390" Dia x 1.062" L (9.91mm x 26.97mm)
Manufacturer Size Code K
Features Wet Tantalum
Win Source Part Number 760391-135D826X9125K6
Family Name 135D
Introduction Date October 12, 2006
ECCN EAR99
Country of Origin United States of America, Israel
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 135D826X9125K6 CAD Model

Description

The 135D826X9125K6 is a hermetically sealed, solid tantalum capacitor manufactured by Vishay. It belongs to the 135D series, known for its high reliability and performance in demanding applications. These capacitors are designed to provide stable capacitance and low ESR (Equivalent Series Resistance) over a wide range of temperatures and frequencies. They are particularly well-suited for military, aerospace, and other high-reliability applications where consistent performance is critical.

Applications

  • Military and aerospace electronics: Used in critical circuits requiring high reliability.
  • Medical equipment: Power supply filtering and decoupling.
  • Industrial control systems: Stable capacitance in harsh environments.
  • Avionics systems: Reliable performance in aircraft electronics.
  • High-end audio equipment: Filtering and signal processing.

Features

  • Hermetically sealed: Provides protection against moisture and contaminants.
  • Solid tantalum construction: Ensures high reliability and long life.
  • High capacitance stability: Maintains capacitance value over temperature and voltage variations.
  • Low ESR (Equivalent Series Resistance): Minimizes power dissipation and voltage ripple.
  • Wide operating temperature range: Suitable for use in extreme environments.
  • Compliant with military standards: Meets stringent performance requirements.

Benefits

  • High reliability: Ensures long-term performance in critical applications.
  • Stable performance: Maintains consistent capacitance and ESR over temperature and voltage.
  • Extended operating life: Solid tantalum construction provides long life in harsh environments.
  • Reduced power dissipation: Low ESR minimizes power loss and heat generation.
  • Resistance to harsh environments: Hermetic seal protects against moisture and contaminants.
  • Compliance with industry standards: Meets military and aerospace requirements.

Additional Details

The 135D826X9125K6 has a capacitance of 82 µF with a tolerance of ±10%. It is rated for a voltage of 125 VDC. The hermetically sealed package ensures that the capacitor is protected from moisture and other environmental factors, contributing to its high reliability. The solid tantalum construction provides excellent stability and long life. This capacitor is designed to meet the stringent requirements of military and aerospace applications, making it a reliable choice for demanding environments. The operating temperature range is typically -55°C to +125°C.
