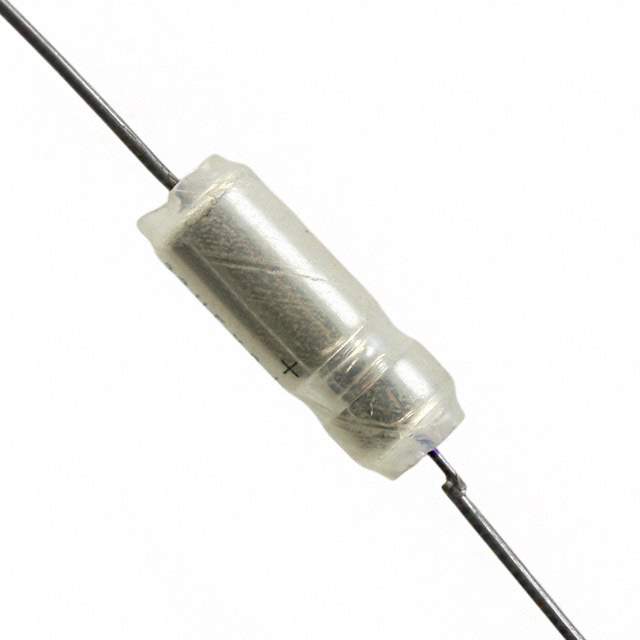

Same model may have multiple batches, images only for reference.

109D156X9030C2

Name: 109D156X9030C2
Brand: Vishay
SKU: 1337733
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	109D156X9030C2
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 15UF 10% 30V AXIAL / 15 µF Hermetically Sealed Tantalum Capacitors 30 V Axial 8Ohm
Datasheet	109D156X9030C2 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Tantalum Capacitors
Mfr	Vishay Sprague
Series	TANTALEX®, 109D
Package	Tray
Capacitance	15 µF
Tolerance	±10%
Voltage - Rated	30 V
Type	Hermetically Sealed
ESR (Equivalent Series Resistance)	8Ohm
Temperature Range - Operating	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	Axial
Size / Dimension	0.219" Dia x 0.608" L (5.56mm x 15.45mm)
Manufacturer Size Code	C
Features	Wet Tantalum
Standard Package	1
RoHS Status	RoHS non-compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0080
Win Source Part Number	1337733-109D156X9030C2
Ultra Librarian 3D Model	Ultra Librarian 109D156X9030C2 CAD Model

Description

The Vishay Sprague TANTALEX® 109D series tantalum capacitor is designed for hermetically sealed electronic devices. Vishay Sprague is the manufacturer, and TANTALEX® 109D series is the product.

Capacitance: 15 µF
Voltage Rating: 30 V
Package: Tray
Standard Package: 1
Tolerance: ±10%
ESR: 8Ohm
Diameter: 0.219"
Length: 0.608"
Mounting: Through hole
Package/Case: Axial
