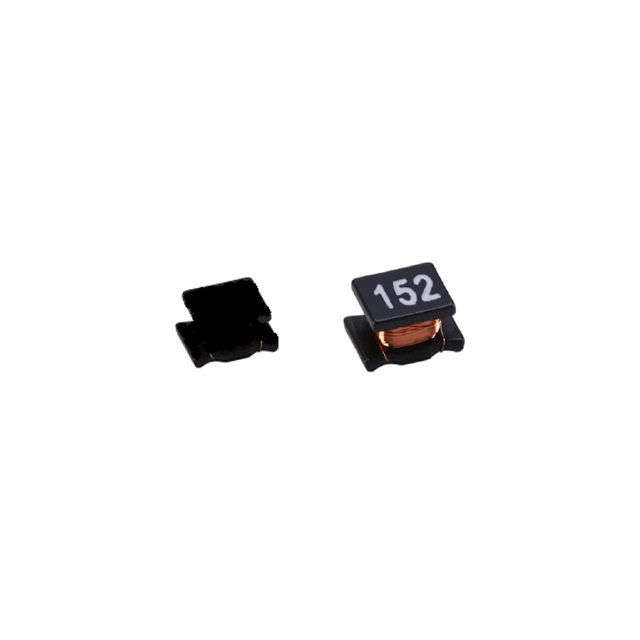

VLH322515-2R2M Real Image
Same model may have multiple batches, images only for reference.

VLH322515-2R2M

Part No VLH322515-2R2M
Manufacturer Viking Tech
Catalog Fixed Inductors
Description FIXED IND 2.2UH 790MA 126MOHM SM / 2.2 µH Unshielded Drum Core, Wirewound Inductor 790 mA 126mOhm Max 1210 (3225 Metric)
Datasheet
VLH322515-2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Viking Tech
Series VLH
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 790 mA
Shielding Unshielded
DC Resistance (DCR) 126mOhm Max
Frequency - Self Resonant 64MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.073" (1.85mm)
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
HTSUS 8533.40.0000
Other Names 2577-VLH322515-2R2MTR
Standard Package 2,000
Win Source Part Number 1103923-VLH322515-2R2M
Ultra Librarian 3D Model Ultra Librarian VLH322515-2R2M CAD Model

Description

This electronic component is a fixed inductor that has a Win Source Part Number of 1103923-VLH322515-2R2M.

  • Product Category: Inductors, coils, and chokes
  • Series: VLH series
  • Type: Drum core, wirewound type of inductor that is unshielded
  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Material: Ferrite
  • DC Resistance: 126mOhm Max
  • Frequency of Self-Resonant: 64MHz
  • Package/Case: 1210 (3225 Metric)
  • Packaging: Tape and reel package that contains 2,000 units
  • HTSUS: 8533.40.0000
  • REACH Info: Available upon request
