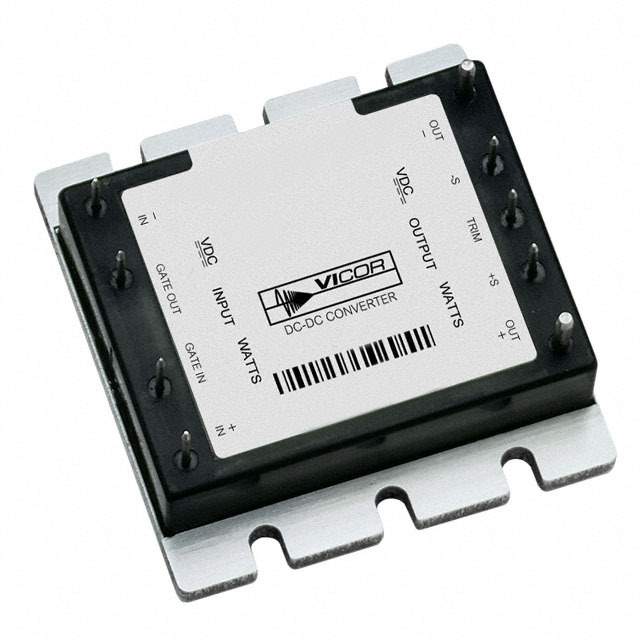

Same model may have multiple batches, images only for reference.

VI-JW0-CZ-S

Name: VI-JW0-CZ-S
Brand: Vicor Corporation
SKU: 1103880
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	VI-JW0-CZ-S
Manufacturer	Vicor Corporation
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 25W / Isolated Module DC DC Converter 1 Output 5V 5A 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Vicor Corporation
Series	VI-J00™ (25W)
Package	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	5A
Power (Watts)	25 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	OCP, SCP
Temperature Range - Operating	-25°C ~ 100°C
Efficiency	90%
Mounting Type	Through Hole
Package / Case	Half Brick
Dimension	2.28" L x 1.80" W x 0.52" H (57.9mm x 45.7mm x 13.2mm)
Base Product Number	VI-JW0
RoHS Status	RoHS non-compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	1
Win Source Part Number	1103880-VI-JW0-CZ-S
Ultra Librarian 3D Model	Ultra Librarian VI-JW0-CZ-S CAD Model

Alternative Products

Description

The VI-JW0-CZ-S is an electronic component manufactured by Vicor Corporation.

Type: Isolated Module DC-DC Converter
Power Output: 25 W
Efficiency: 90%
Applications: ITE (Commercial)
Voltage Isolation: 3 kV
Maximum Output Current: 5 A
Protection: Overcurrent Protection (OCP) and Short-Circuit Protection (SCP)
Mounting Type: Through-Hole
Package/Case: Half Brick
Operating Temperature Range: -25°C to 100°C
Standard Package: 1
Alternative Parts (Cross-Reference): VI-JW1-CY, VI-JWZ-CY, VI-JWY-CY
ECCN: EAR99
RoHS: Non-Compliant
