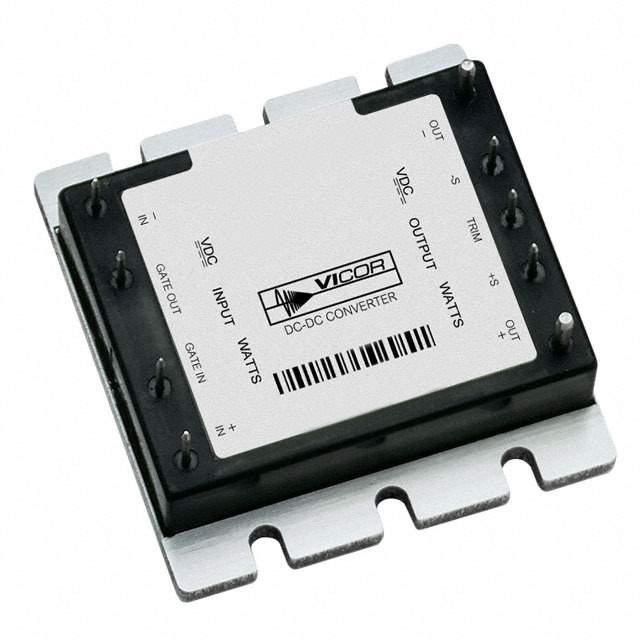

Same model may have multiple batches, images only for reference.

VI-J70-CY-F4

Get a Quote

Part No	VI-J70-CY-F4
Manufacturer	Vicor Corporation
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 50W / Isolated Module DC DC Converter 1 Output 5V 10A 100V - 375V Input
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Vicor Corporation
Series	VI-J00™ (50W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	100V
Voltage - Input (Max)	375V
Voltage - Output 1	5V
Current - Output (Max)	10A
Power (Watts)	50 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	OCP, SCP
Temperature Range - Operating	-25°C ~ 100°C
Efficiency	90%
Mounting Type	Through Hole
Package / Case	Half Brick
Dimension	2.28" L x 1.86" W x 1.04" H (57.9mm x 47.2mm x 26.4mm)
Base Product Number	VI-J70
RoHS Status	RoHS non-compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	1
Win Source Part Number	1103879-VI-J70-CY-F4
Ultra Librarian 3D Model	Ultra Librarian VI-J70-CY-F4 CAD Model

Alternative Products

Description

The VI-J00™ (50W) series isolated module DC-DC converter is a high-performance power supply board mount converter.

Application: ITE (Commercial)
Protection: OCP and SCP
Output Current: 10A (Max)
Output Voltage: 5V
Power: 50W
Voltage Isolation: 3 kV
Efficiency: 90%
Package/Case: Half Brick
Mounting Type: Through-Hole
Operating Temperature: -25°C to 100°C
Dimension: 2.28" L x 1.86" W x 1.04" H (57.9mm x 47.2mm x 26.4mm)
Base Product Number: VI-J70
Alternative Parts (Cross-Reference): VI-J7P-CY, VI-J7Y-CY, and VI-J71-CZ
Status: Obsolete
RoHS: Non-Compliant
