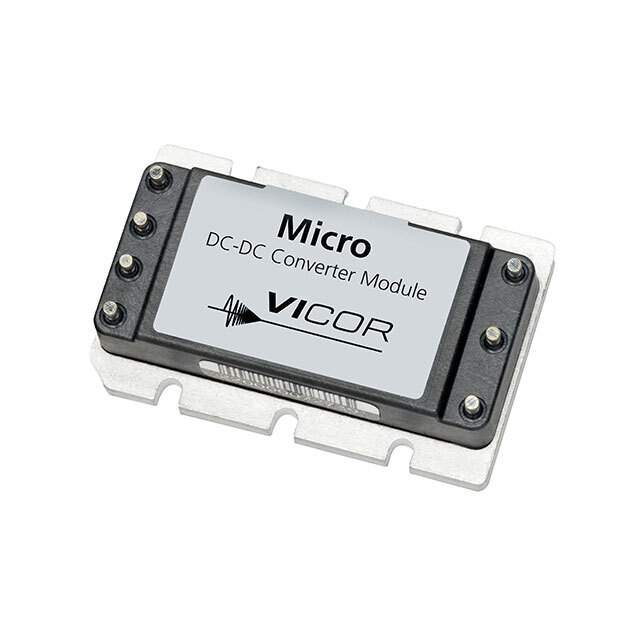

Same model may have multiple batches, images only for reference.

V24C3V3C75BL

Name: V24C3V3C75BL
Brand: Vicor Corporation
SKU: 1232672
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	V24C3V3C75BL
Manufacturer	Vicor Corporation
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 75W / Isolated Module DC DC Converter 1 Output 3.3V 22.72A 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Vicor Corporation
Series	MICRO (75W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	3.3V
Current - Output (Max)	22.72A
Power (Watts)	75 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	OVP, UVLO
Temperature Range - Operating	-20°C ~ 100°C
Efficiency	79%
Mounting Type	Through Hole
Package / Case	Quarter Brick
Dimension	2.28" L x 1.45" W x 0.62" H (57.9mm x 36.8mm x 15.7mm)
Base Product Number	V24C3V3C75
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	V24C3V3C75BL-ND,1102-1289
Standard Package	1
Win Source Part Number	1232672-V24C3V3C75BL
Ultra Librarian 3D Model	Ultra Librarian V24C3V3C75BL CAD Model

Alternative Products

Description

The V24C3V3C75BL is a MICRO (75W) series Isolated Module DC-DC Converter from Vicor Corporation.

Application: ITE (Commercial)
Power Output: 75 W
Efficiency: 79%
Input Voltage Range: 18V to 36V
Isolation Voltage: 3 kV
Output Voltage: 3.3V
Maximum Output Current: 22.72A
Package Type: Quarter Brick
Mounting: Through hole
Operating Temperature Range: -20°C to 100°C
Dimensions: 2.28" L x 1.45" W x 0.62" H (57.9mm x 36.8mm x 15.7mm)
Features: Equipped with OVP and UVLO features
