Same model may have multiple batches, images only for reference.

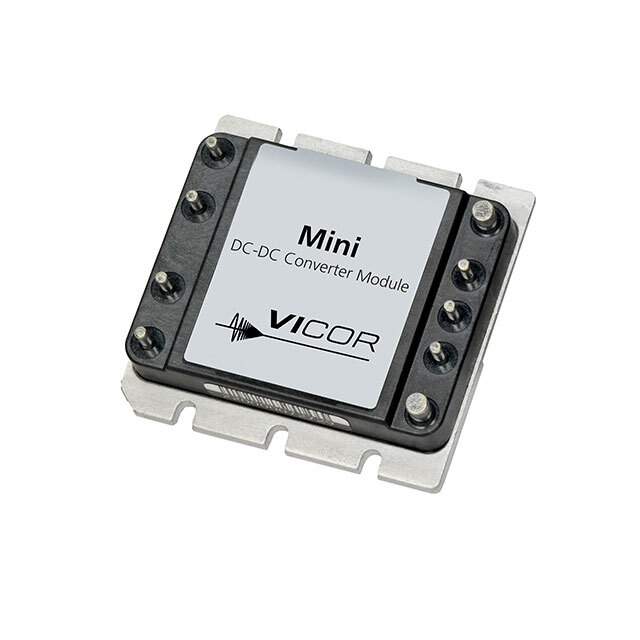

V24B5C150BL Real Image
Same model may have multiple batches, images only for reference.

V24B5C150BL

Part No V24B5C150BL
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 150W / Isolated Module DC DC Converter 1 Output 5V 30A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Vicor Corporation
Series MINI (150W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 30A
Power (Watts) 150 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features OVP, UVLO
Temperature Range - Operating -20°C ~ 100°C
Efficiency 84.8%
Mounting SMD (SMT)
Package / Case Module
Dimension 2.28" L x 2.20" W x 0.50" H (57.9mm x 55.9mm x 12.7mm)
Base Product Number V24B5C150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names V24B5C150BL-ND,1102-1275
Standard Package 1
Win Source Part Number 1026757-V24B5C150BL
Ultra Librarian 3D Model Ultra Librarian V24B5C150BL CAD Model

Description

The Vicor Corporation V24B5C150BL is a 150W isolated module DC-DC converter.

  • Series: MINI series
  • Features: OVP and UVLO
  • Package: tube
  • Application: ITE (Commercial)
  • Standard Package: 1
  • Mounting: SMD (SMT) technology
  • Voltage Isolation: 3 kV
  • Output: single output
  • Maximum Current: 30A
  • Input Voltage: 18V to 36V
  • Output Voltage: 5V
  • Efficiency: 84.8%
  • Operating Temperature Range: -20°C to 100°C
  • Dimension: 2.28" L x 2.20" W x 0.50" H (57.9mm x 55.9mm x 12.7mm)
  • Alternative parts: VI-2W0-CV, MTC1S2405MC-R7, RS3-2405S/H3, RSO-2405S/H3, RS-2405S/H3, and V24C5T50BN.
