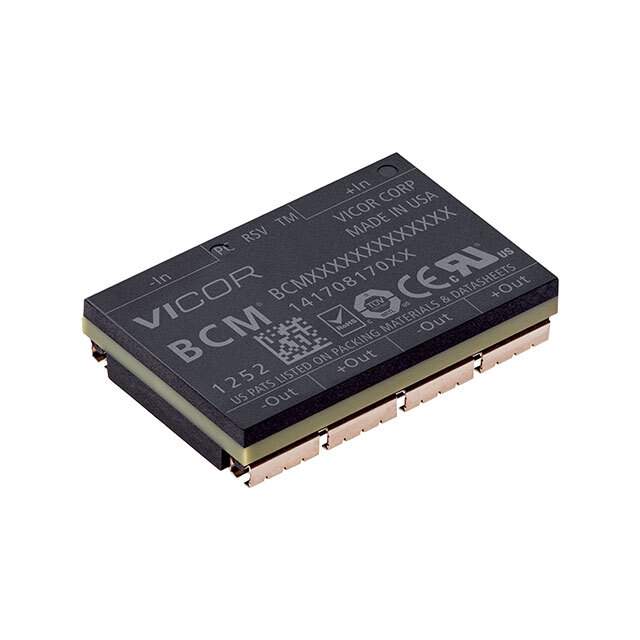

Same model may have multiple batches, images only for reference.

BCM48BF480T300A00

Name: BCM48BF480T300A00
Brand: Vicor Corporation
SKU: 1207758
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

Part No	BCM48BF480T300A00
Manufacturer	Vicor Corporation
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 48V 300W / Bus Converter Module DC DC Converter 1 Output 48V 6.25A 38V - 55V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Vicor Corporation
Series	VI Chip® BCM® (300W)
Package	Tray
Type	Bus Converter Module
Number of Outputs	1
Voltage - Input (Min)	38V
Voltage - Input (Max)	55V
Voltage - Output 1	48V
Current - Output (Max)	6.25A
Power (Watts)	300 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	OCP, OTP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 125°C
Efficiency	96%
Mounting	SMD (SMT)
Package / Case	Module
Dimension	1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm)
Approval Agency	CE, cURus, TUV
Base Product Number	BCM48
MSL Level	4 (72 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.8500
Other Names	BCM48BF480T300A00-ND,1102-5669
Standard Package	1
Win Source Part Number	1207758-BCM48BF480T300A00
Ultra Librarian 3D Model	Ultra Librarian BCM48BF480T300A00 CAD Model

Alternative Products

Description

The VI Chip® BCM® (300W) is a bus converter module designed for use in power supplies - board mount DC DC converters. This module is manufactured by Vicor Corporation and is a highly reliable and efficient product.

Features: OCP, OTP, SCP, and UVLO
Package/Case: Module
Voltage Isolation: 2.25 kV
Output Voltage: 48V
Efficiency: 96%
Temperature Range: -40°C to 125°C
Approvals: CE, cURus, and TUV
