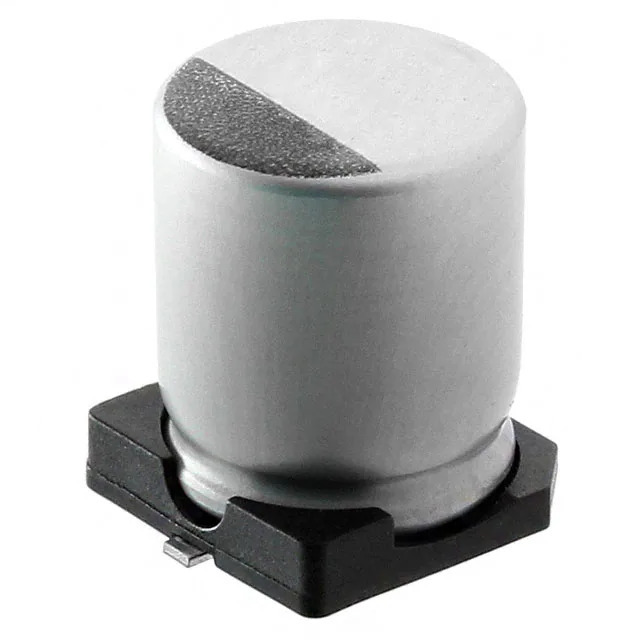

Same model may have multiple batches, images only for reference.
EMZR160ARA681MHA0G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMZR160ARA681MHA0G

Part No EMZR160ARA681MHA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 16V SMD / 680 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 80mOhm @ 100kHz 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZR
Package Tape & Reel
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 80mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360338-EMZR160ARA681MHA0G
Ultra Librarian 3D Model Ultra Librarian EMZR160ARA681MHA0G CAD Model

Description

The United Chemi-Con Alchip™- MZR series capacitor is a high-quality aluminum electrolytic capacitor that is suitable for automotive applications.

  • Manufacturer: United Chemi-Con
  • Product Name: Alchip™- MZR Series Capacitor
  • Capacitance: 680 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Ripple Current (Low Frequency): 510 mA @ 120 Hz
  • Ripple Current (High Frequency): 850 mA @ 100 kHz
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Size (Diameter): 0.315"
  • Seated Height: 0.413"
  • Surface Mount Land Size: 0.327" L x 0.327" W
  • Product Status: Active
