Same model may have multiple batches, images only for reference.

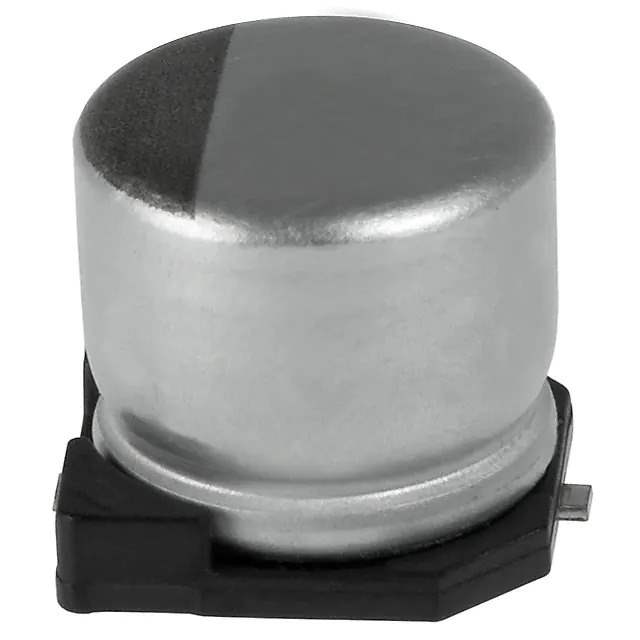

EMZA160ARA221MF80G Real Image
Same model may have multiple batches, images only for reference.

EMZA160ARA221MF80G

Part No EMZA160ARA221MF80G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 16V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 280 mA @ 100 kHz
Impedance 340 mOhms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 971068-EMZA160ARA221MF80G
Ultra Librarian 3D Model Ultra Librarian EMZA160ARA221MF80G CAD Model

Description

The Alchip™- MZA series capacitors are aluminum electrolytic capacitors designed for automotive applications. The 971068-EMZA160ARA221MF80G is part of this series and has a capacitance of 220µF with a voltage rating of 16V.

  • Capacitance: 220µF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Temperature Range: -55°C to 105°C
  • Standard Package: 900 pcs
  • Mounting: Surface mountable
  • Package: Radial, can - SMD
  • Manufacturer: United Chemi-Con
  • Status: Active
  • Standard: AEC-Q200
