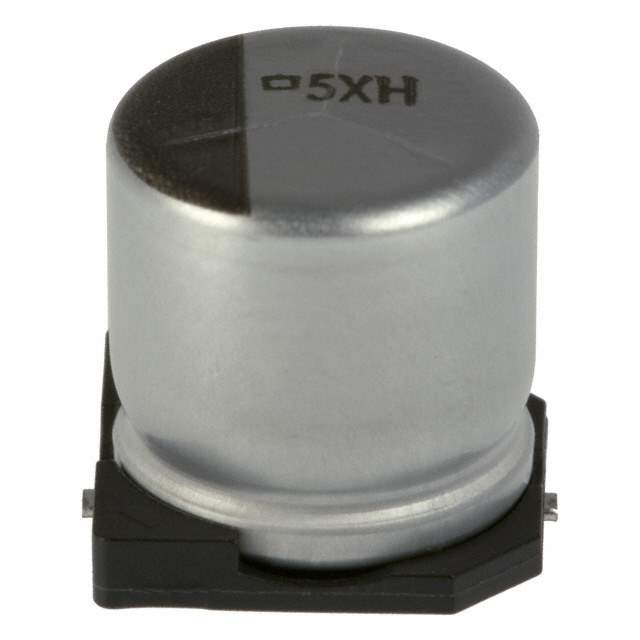

EMVH500ADA470MJA0G Real Image
Same model may have multiple batches, images only for reference.

EMVH500ADA470MJA0G

Part No EMVH500ADA470MJA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 50V SMD / 47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 500mOhm @ 100kHz 2000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVH
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 500mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Applications Automotive
Ripple Current @ Low Frequency 229.71 mA @ 120 Hz
Ripple Current @ High Frequency 247 mA @ 100 kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-2325-2,565-2325-1,565-2325-6
Standard Package 500
Win Source Part Number 986108-EMVH500ADA470MJA0G
Ultra Librarian 3D Model Ultra Librarian EMVH500ADA470MJA0G CAD Model

Description

The EMVH500ADA470MJA0G is an aluminum electrolytic capacitor from United Chemi-Con.

  • Capacitance: 47µF
  • Voltage - Rated: 50V
  • Tolerance: +/- 20%
  • Polarization: Polarized
  • ESR (Equivalent Series Resistance): 500mOhm @ 100kHz
  • Ripple Current @ Low Frequency: 229.71mA @ 120Hz
  • Ripple Current @ High Frequency: 247mA @ 100kHz
  • Packaging: Tape & Reel (TR)
  • Standard Package: 500
  • Mounting Type: SMD (SMT)
  • Package / Case: Radial, Can - SMD
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Height - Seated (Max): 0.394" (10.00mm)
  • Operating Temperature: -40°C ~ 125°C
  • Lifetime @ Temp.: 2000 Hrs @ 125°C
  • ECCN: EAR99
  • REACH Status: REACH unaffected
