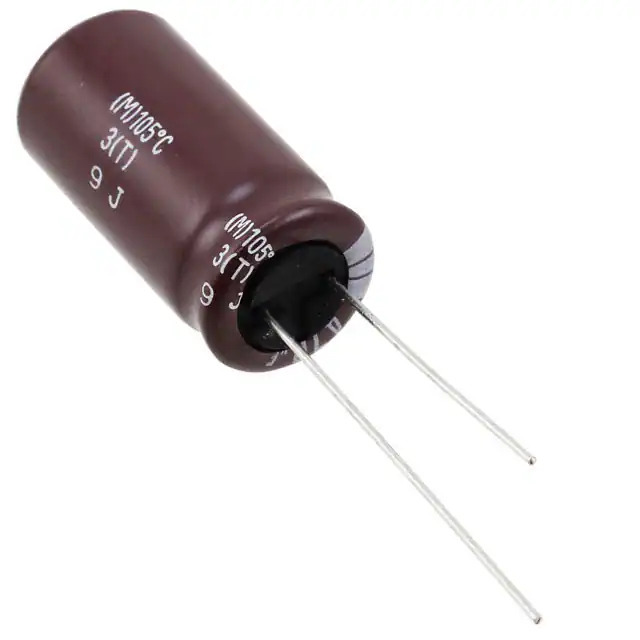

Same model may have multiple batches, images only for reference.
ELXV630ELL271MK25S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXV630ELL271MK25S

Part No ELXV630ELL271MK25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 270UF 20% 63V RADIAL / 270 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXV
Package Bulk
Product Status Active
Capacitance 270 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 402.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.15 A @ 100 kHz
Impedance 74 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.043" (26.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358188-ELXV630ELL271MK25S
Ultra Librarian 3D Model Ultra Librarian ELXV630ELL271MK25S CAD Model

Description

The United Chemi-Con LXV series aluminum electrolytic capacitor is a high-quality component designed for automotive applications. With a capacitance of 270 µF and a voltage rating of 63 V, this capacitor offers reliable performance and stability.

  • Capacitance: 270 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 105°C
  • Package: Radial, can
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.492" Dia (12.50mm)
  • Height When Seated: 1.043" (26.50mm)
  • Lifetime: 5000 hours @ 105°C
  • Impedance: 74 mOhms
  • Ripple Current (Low Frequency): 402.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.15 A @ 100 kHz
  • Product Status: Active
  • REACH: Unaffected
