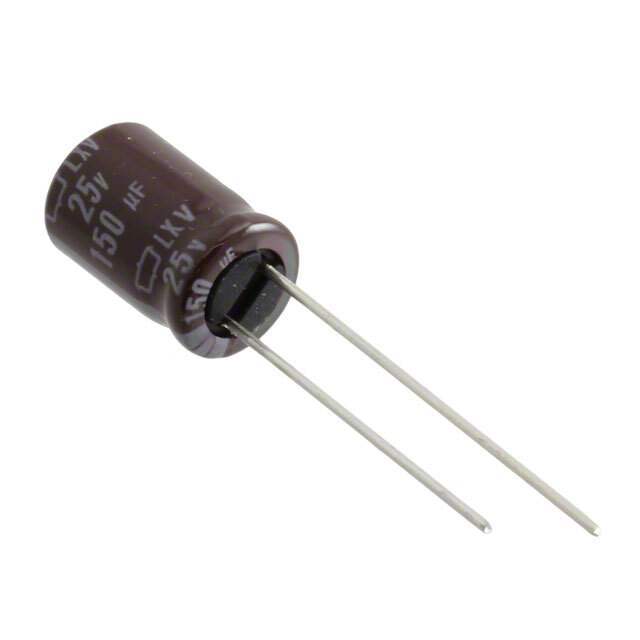

Same model may have multiple batches, images only for reference.
ELXV101ELL220MH12DChemi-Con
Same model may have multiple batches, images only for reference.

ELXV101ELL220MH12D

Part No ELXV101ELL220MH12D
Manufacturer United Chemi-Con
Catalog Aluminum Electrolytic Capacitors
Description CAP ALUM 22UF 20% 100V RADIAL TH
Datasheet
ELXV101ELL220MH12D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Chemi-Con
Packaging  Bulk
Part Status Obsolete
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ripple Current @ Low Frequency 55 mA @ 120 Hz
Ripple Current @ High Frequency 275 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Ultra Librarian 3D Model Ultra Librarian ELXV101ELL220MH12D CAD Model

Description

22 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
