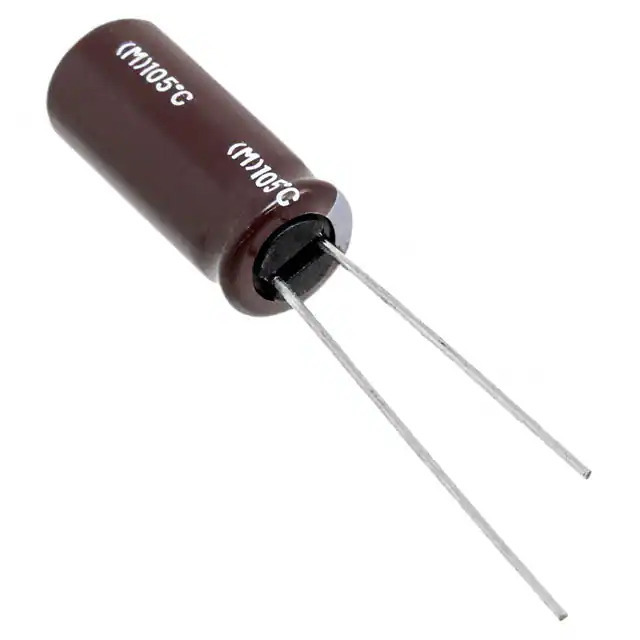

EKZN250ELL561MH20D United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZN250ELL561MH20D

Part No EKZN250ELL561MH20D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 25V RADIAL / 560 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZN
Package Bulk
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 980 mA @ 120 Hz
Ripple Current @ High Frequency 1.96 A @ 100 kHz
Impedance 41 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357987-EKZN250ELL561MH20D
Ultra Librarian 3D Model Ultra Librarian EKZN250ELL561MH20D CAD Model

Description

The KZN series from United Chemi-Con is a bulk-packaged radial aluminum electrolytic capacitor.

  • Capacitance: 560 μF
  • Voltage Rating: 25 V
  • Application: General-Purpose
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 980 mA @ 120 Hz
  • Ripple Current @ High Frequency: 1.96 A @ 100 kHz
  • Lead Spacing: 0.138" (3.50mm)
  • Size/Dimension: 0.315" (8.00mm) in diameter and 0.846" (21.50mm) in height
  • Lifetime: 10000 hours @ a maximum temperature of 105°C
  • Mounting Type: Through-Hole
  • Polarization: Polar
  • Product Status: Active
