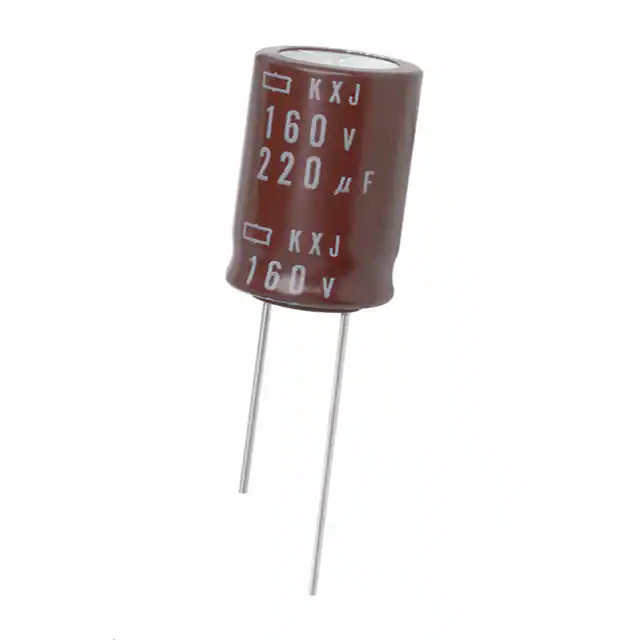

Same model may have multiple batches, images only for reference.
EKXJ201ELL470MJ20S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKXJ201ELL470MJ20S

Part No EKXJ201ELL470MJ20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 200V RADIAL / 47 µF 200 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KXJ
Package Bulk
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 290 mA @ 120 Hz
Ripple Current @ High Frequency 725 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357910-EKXJ201ELL470MJ20S
Ultra Librarian 3D Model Ultra Librarian EKXJ201ELL470MJ20S CAD Model

Description

The EKXJ201ELL470MJ20S is an aluminum electrolytic capacitor from United Chemi-Con.

  • Series: KXJ
  • Capacitance: 47 μF
  • Tolerance: ±20%
  • Voltage Rating: 200 V
  • Application: Automotive
  • Ripple Current: 290 mA @ 120 Hz, 725 mA @ 100 kHz
  • Mounting Type: Through-Hole
  • Package: Radial, Can
  • Size: 0.394" Dia (10.00mm)
  • Height: 0.846" (21.50mm)
  • Lifetime: 10000 hours @ 105°C
  • AEC-Q200: Rated
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polarized
