Same model may have multiple batches, images only for reference.

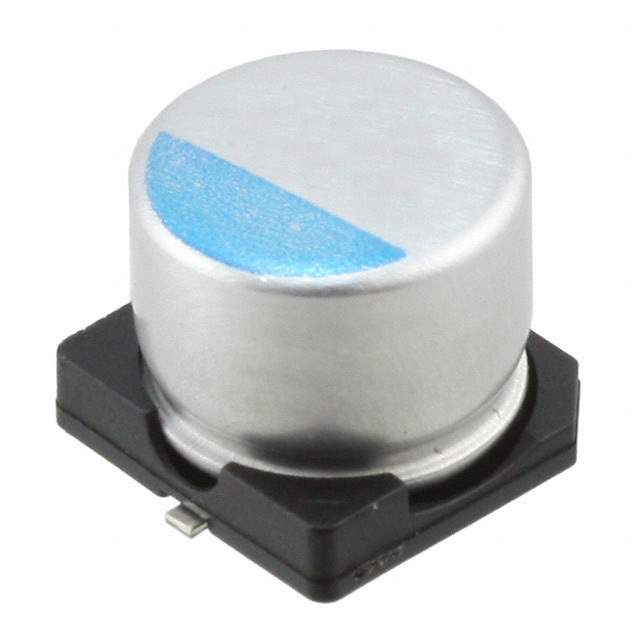

APXE6R3ARA391MH70G Real Image
Same model may have multiple batches, images only for reference.

APXE6R3ARA391MH70G

Part No APXE6R3ARA391MH70G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 390UF 20% 6.3V SMD / 390 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 14mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXE
Package Tape & Reel
Type Polymer
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 14mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3.95 A @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.264" (6.70mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-3192-6,565-3192-1,565-3192-2
Standard Package 1,000
Win Source Part Number 992052-APXE6R3ARA391MH70G
Ultra Librarian 3D Model Ultra Librarian APXE6R3ARA391MH70G CAD Model

Description

The NPCAP™-PXE series of capacitors from United Chemi-Con is a polymer type capacitor that is designed for general purpose applications. The 992052-APXE6R3ARA391MH70G is a surface mount aluminum-polymer capacitor that has a capacitance of 390 µF and a voltage rating of 6.3 V.

  • ESR (Equivalent Series Resistance): 14mOhm
  • Lifetime: 2000 hours @ 105°C
  • Package: radial, can - SMD
  • Dimension: 0.315" Dia (8.00mm)
