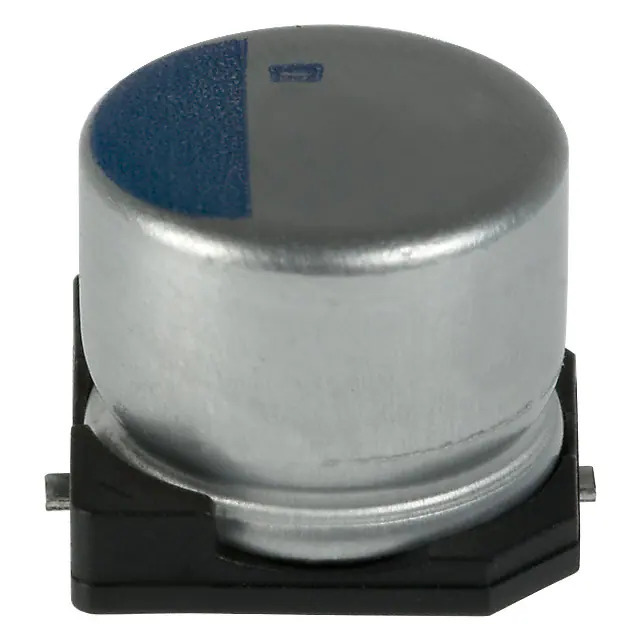

Same model may have multiple batches, images only for reference.
APXA200ARA470MH70G United Chemi-Con
Same model may have multiple batches, images only for reference.

APXA200ARA470MH70G

Part No APXA200ARA470MH70G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 47UF 20% 20V SMD / 47 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 45mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXA
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 45mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 2 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360194-APXA200ARA470MH70G
Ultra Librarian 3D Model Ultra Librarian APXA200ARA470MH70G CAD Model

Description

The 1360194-APXA200ARA470MH70G is a polymer capacitor manufactured by United Chemi-Con.

  • Series: NPCAP™-PXA
  • Mounting Type: Surface Mount
  • Capacitance: 47 µF
  • Voltage Rating: 20 V
  • Tolerance: ±20%
  • Equivalent Series Resistance (ESR): 45mOhm
  • Lifetime: 15000 hours @ 105°C
  • Application: General Purpose
  • Ripple Current: 2 A @ 100 kHz
  • Diameter: 0.315"
  • Height: 0.276"
  • Surface Mount Land Size: 0.327" x 0.327"
  • REACH: Unaffected
  • ECCN: EAR99
  • Status: Active
