Same model may have multiple batches, images only for reference.

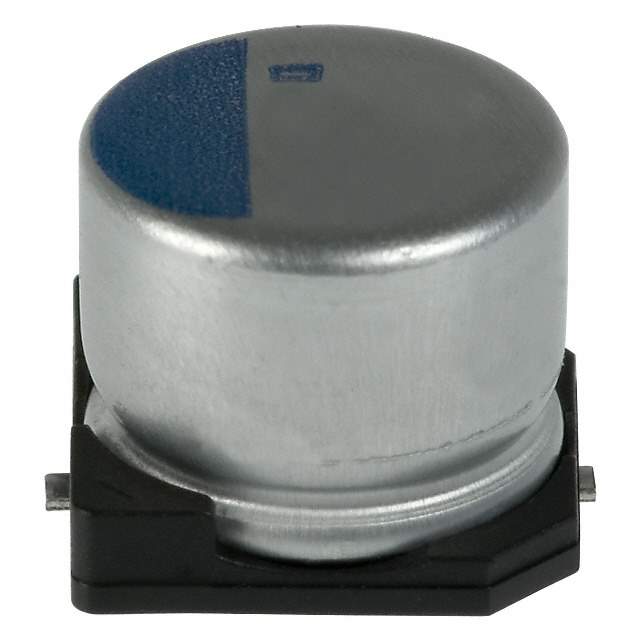

APXA160ARA181MHC0G Real Image
Same model may have multiple batches, images only for reference.

APXA160ARA181MHC0G

Part No APXA160ARA181MHC0G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 180UF 20% 16V SMD / 180 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 16mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXA
Package Tape & Reel
Type Polymer
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 16mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 4.36 A @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names APXA160ARA181MH12S,565-3078-2,565-3078-1,APXA160ARA181MHCOG,PXA16VC181MH12TP,565-3078-6
Standard Package 400
Win Source Part Number 1171566-APXA160ARA181MHC0G
Ultra Librarian 3D Model Ultra Librarian APXA160ARA181MHC0G CAD Model

Description

The United Chemi-Con 1171566-APXA160ARA181MHC0G is a capacitor from the NPCAP™-PXA series.

  • Series: NPCAP™-PXA
  • Type: Polymer capacitor
  • Capacitance: 180 µF
  • Voltage Rating: 16V
  • Package: Radial, can - SMD
  • Mounting Type: Surface-mounted
  • Operating Temperature Range: -55°C ~ 105°C
  • Feature: 16mOhm 15000 Hrs @ 105°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8532.22.0020
  • Other Part Numbers: APXA160ARA181MH12S,565-3078-2,565-3078-1,APXA160ARA181MHCOG,PXA16VC181MH12TP,565-3078-6
  • Ripple Current: 4.36 A @ 100 kHz
