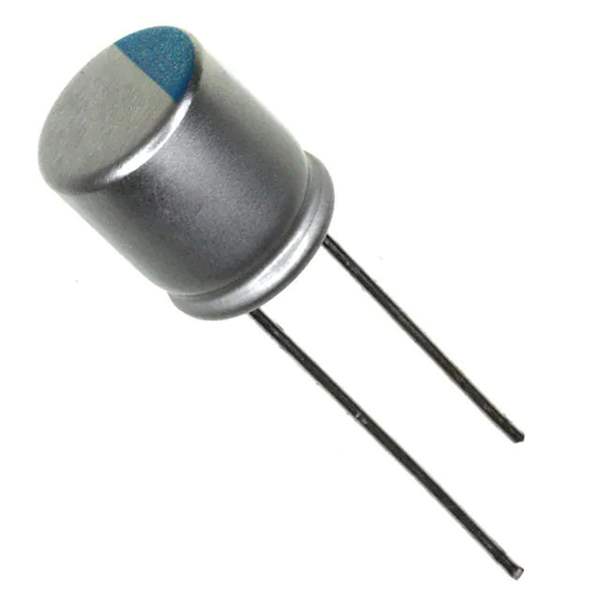

APSG160ELL102MJB5S United Chemi-Con
Same model may have multiple batches, images only for reference.

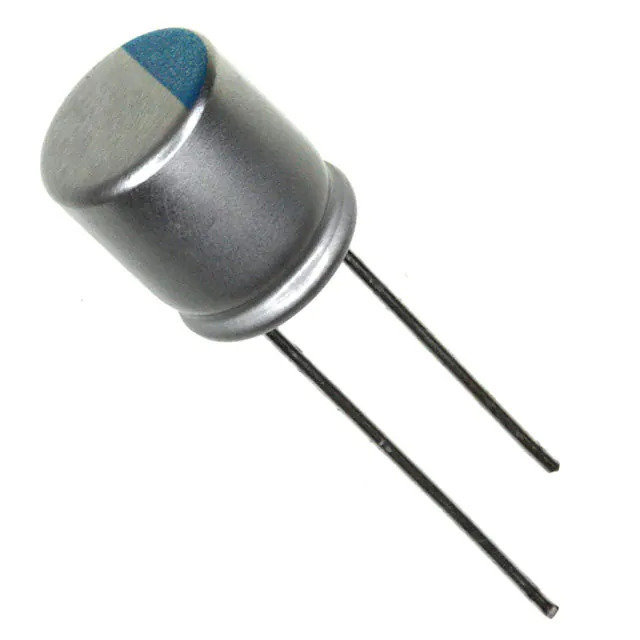

APSG160ELL102MJB5S

Part No APSG160ELL102MJB5S
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 1000UF 20% 16V T/H / 1000 µF 16 V Aluminum - Polymer Capacitors Radial, Can 12mOhm 20000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PSG
Package Bulk
Product Status Active
Type Polymer
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 12mOhm
Lifetime @ Temp. 20000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 5.4 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359518-APSG160ELL102MJB5S
Ultra Librarian 3D Model Ultra Librarian APSG160ELL102MJB5S CAD Model

Description

The United Chemi-Con 1359518-APSG160ELL102MJB5S is a polymer capacitor from the NPCAP™-PSG series. It has a capacitance of 1000 μF and a voltage rating of 16 V.

  • Capacitance: 1000 μF
  • Voltage Rating: 16 V
  • ESR: 12mOhm
  • Application: General-purpose
  • Ripple Current: 5.4 A @ 100 kHz
  • Mounting Type: Through-hole
  • Package: Radial, can
  • Diameter: 0.394 inches (10.00mm)
  • Height: 0.453 inches (11.50mm)
  • Lifetime: 20000 hours @ a temperature of 105°C
  • REACH: Unaffected
  • ECCN: EAR99
