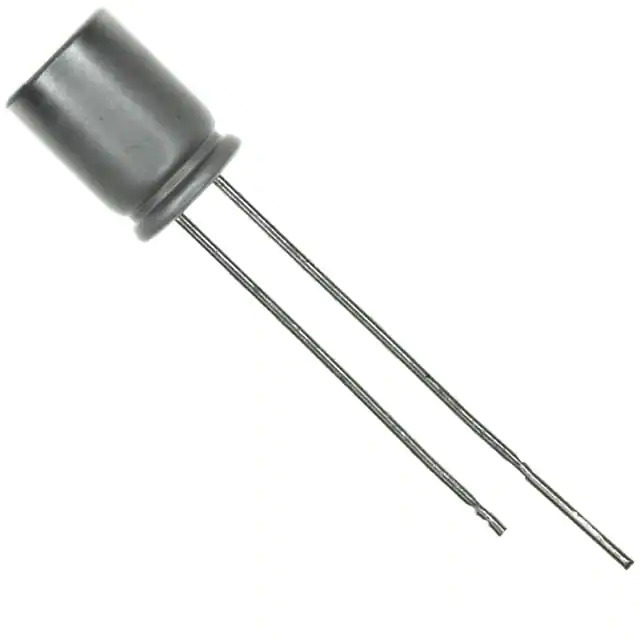

Same model may have multiple batches, images only for reference.
APSE6R3ELL561MF08S United Chemi-Con
Same model may have multiple batches, images only for reference.

APSE6R3ELL561MF08S

Part No APSE6R3ELL561MF08S
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 6.3V T/H / 560 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can 8mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PSE
Package Bulk
Product Status Active
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 8mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 4.7 A @ 100 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359580-APSE6R3ELL561MF08S
Ultra Librarian 3D Model Ultra Librarian APSE6R3ELL561MF08S CAD Model

Description

The 1359580-APSE6R3ELL561MF08S is a polymer capacitor from United Chemi-Con's NPCAP™-PSE series.

  • Capacitance: 560 µF
  • Voltage Rating: 6.3 V
  • Equivalent Series Resistance (ESR): 8mOhm
  • Diameter: 6.30mm
  • Height: 8.00mm
  • Mounting Type: Through-Hole
  • Package: Radial, Can
  • Lifetime: 5000 hours @ 105°C
