SMA-PJ-085S TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

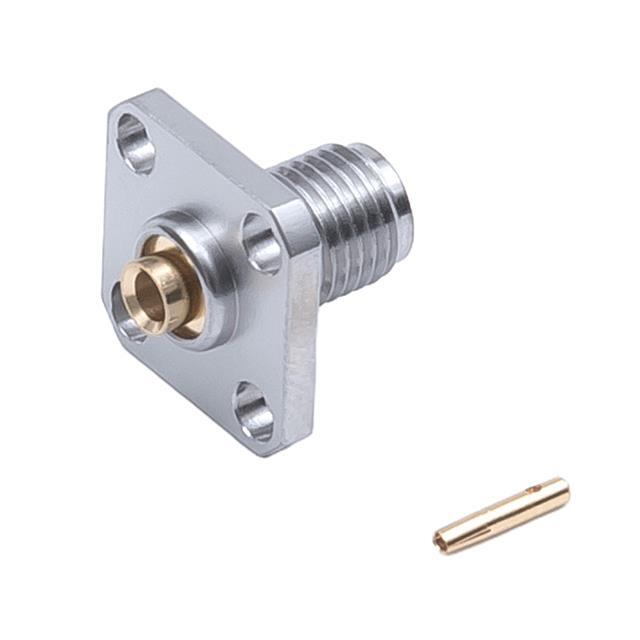

SMA-PJ-085S

Part No SMA-PJ-085S
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Datasheet
SMA-PJ-085S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Panel Mount
Mounting Feature Flange
Cable Group RG-405 (.085" Semi Rigid)
Fastening Type Threaded
Frequency - Max 12.4GHz
Number of Ports 1
Center Contact Material Beryllium Copper
Ultra Librarian 3D Model Ultra Librarian SMA-PJ-085S CAD Model
