SHV-BR TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

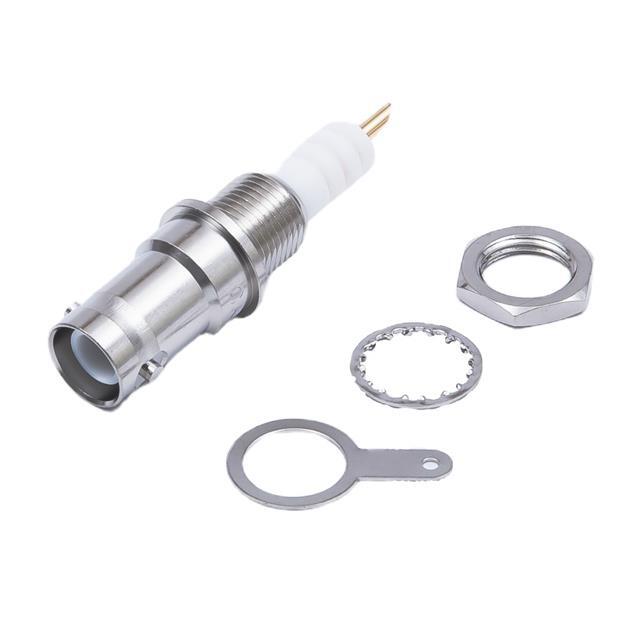

SHV-BR

Part No SHV-BR
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description SHV Connector Jack, Female Socket Panel Mount Solder Cup
Datasheet
SHV-BR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style SHV
Connector Type Jack, Female Socket
Contact Termination Solder Cup
Shield Termination Solder
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Fastening Type Bayonet Lock
Number of Ports 1
Features Extended Insulation
Housing Color Silver
Center Contact Material Brass
Ultra Librarian 3D Model Ultra Librarian SHV-BR CAD Model
