NJ-SMAP-18G TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

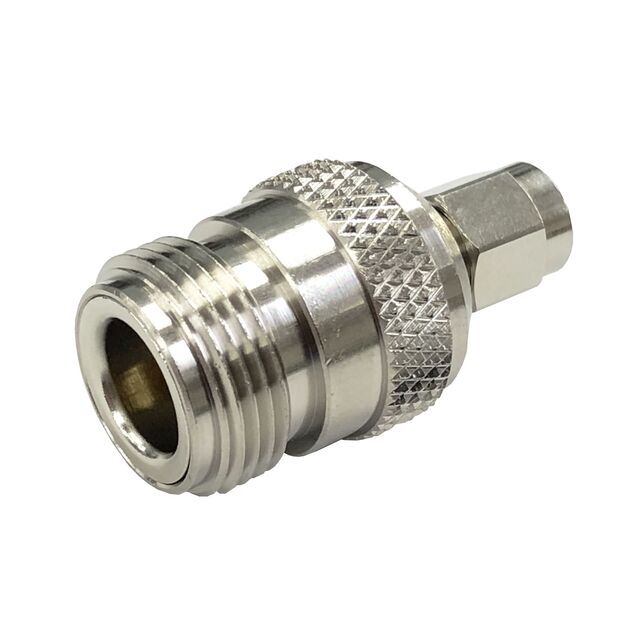

NJ-SMAP-18G

Part No NJ-SMAP-18G
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description Adapter Coaxial Connector N Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
Datasheet
NJ-SMAP-18G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Adapter Type Plug to Jack
Conversion Type Between Series
Adapter Series SMA to N
Center Gender Female to Male
Convert From (Adapter End) N Jack, Female Socket
Convert To (Adapter End) SMA Plug, Male Pin
Impedance 50 Ohms
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Threaded, Threaded
Frequency - Max 18GHz
Center Contact Plating Gold
Ultra Librarian 3D Model Ultra Librarian NJ-SMAP-18G CAD Model
