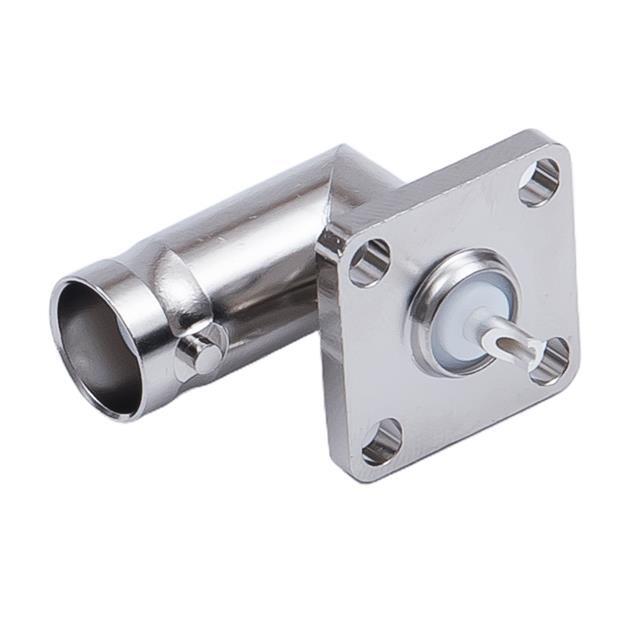

BNC-LR

Part No BNC-LR
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description an BNC Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 2 GHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (Between inner conductors: 1.5mΩ(Max.),Between outer conductors: 1.0mΩ(Max.)), and an excellent V.S.W.R 1.4(Max.) at DC~2 GHz. Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Phosphor Bronze/Silver Plating, while the body is Brass/Nickel Plating. Terminal Shape is solder.
Datasheet
BNC-LR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style BNC
Connector Type Receptacle, Female Socket
Contact Termination Solder Cup
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Panel Mount, Right Angle
Mounting Feature Flange
Fastening Type Bayonet Lock
Frequency - Max 2GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass, Phosphor Bronze
Ultra Librarian 3D Model Ultra Librarian BNC-LR CAD Model
