BA-PJ-3 TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

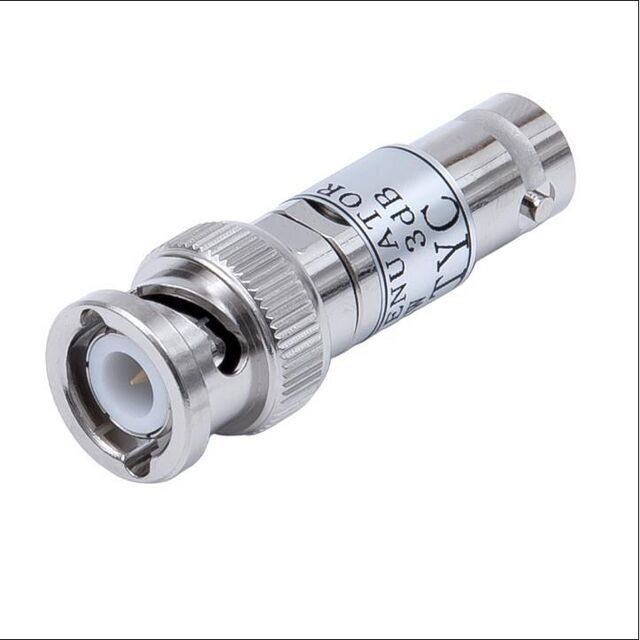

BA-PJ-3

Part No BA-PJ-3
Manufacturer TYCLON
Catalog Attenuators
Description This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 4 GHz, and an excellent V.S.W.R 1.2(Max.) at DC~2 GHz, 1.3(Max.) at 2~4 GHz. Withstanding temperatures from -20 to +65°C. The contact is made of Gold Plating, while the body is Brass/Nickel Plating. Rated Power is 2W.Attenuation is 3±0.3dB up to 2GHz, 3±0.5dB up to 4GHz.
Datasheet
BA-PJ-3 Datasheet
Sample
Rohs State rohs
ECAD Module
