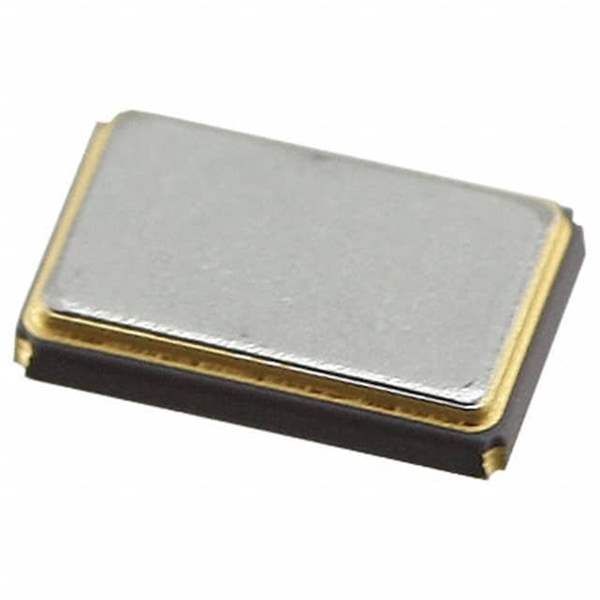

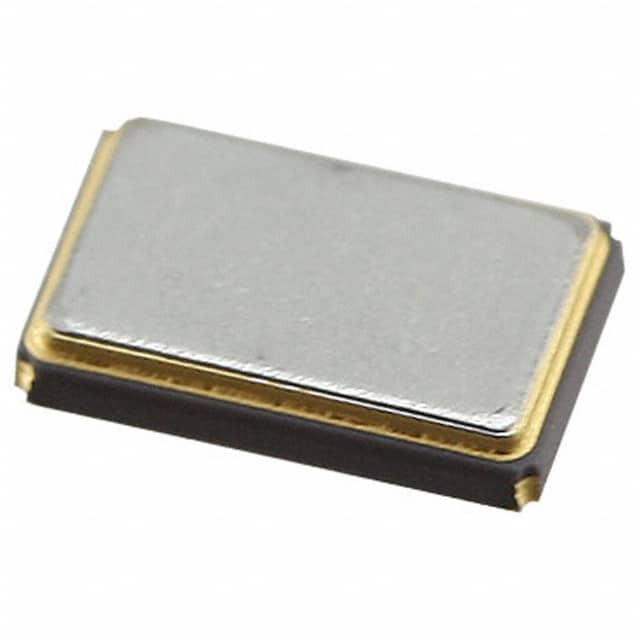

Part No AB-13.560MANH-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 13.5600MHZ 15PF SMD
Datasheet
AB-13.560MANH-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series AB
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 13.56 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 15pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.041" (1.05mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 859162-AB-13.560MANH-T
Ultra Librarian 3D Model Ultra Librarian AB-13.560MANH-T CAD Model

Description

The 859162-AB-13.560MANH-T is a high-quality MHz Crystal from the AB series.

  • Mounting Type: Surface Mount
  • Package: 4-SMD, No Lead
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Seated Height: 0.041" (1.05mm)
  • Frequency: 13.56 MHz
  • ESR (Equivalent Series Resistance): 80 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 15pF
  • Mode: Fundamental
  • Temperature Range: -40°C to 125°C
  • Rating: AEC-Q200
