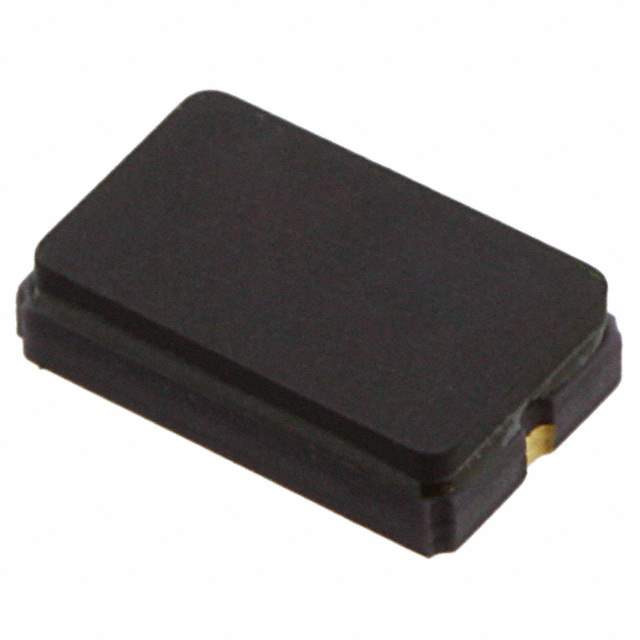

AA08000002 Real Image
Same model may have multiple batches, images only for reference.

AA08000002

Part No AA08000002
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 8PF SMD / 8 MHz ±30ppm Crystal 8pF 150 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer TXC CORPORATION
Packaging Reel - TR
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Surface Mount
Case / Package 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Standard Package 1,000
Win Source Part Number 1328341-AA08000002
Ultra Librarian 3D Model Ultra Librarian AA08000002 CAD Model

Description

The TXC CORPORATION 1328341-AA08000002 is an 8 MHz crystal from TXC CORPORATION.

  • Frequency: 8 MHz
  • Frequency Stability: ±100ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 8pF
  • ESR: 150 Ohms
  • Mounting Type: Surface Mount
  • RoHS Compliant: Yes
