Same model may have multiple batches, images only for reference.

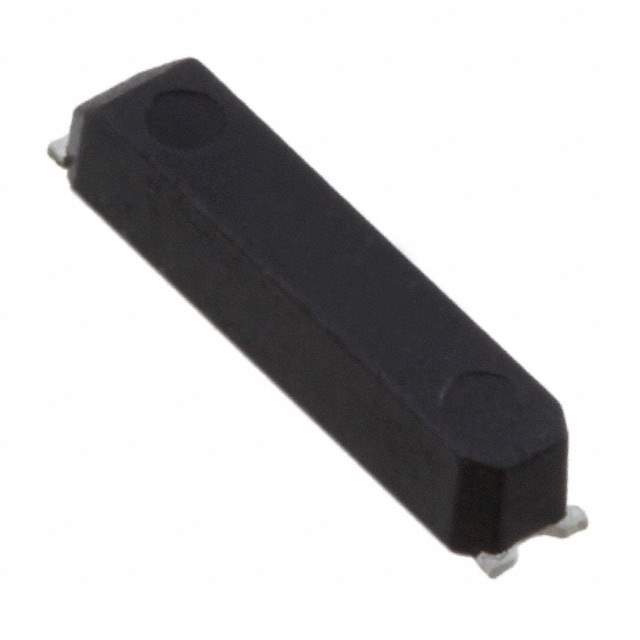

9HT7-32.768KDZF-T Real Image
Same model may have multiple batches, images only for reference.

9HT7-32.768KDZF-T

Part No 9HT7-32.768KDZF-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±20ppm Crystal 12.5pF 65 kOhms 4-SMD, Flat Leads
Datasheet
9HT7-32.768KDZF-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series 9HT7
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 65 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, Flat Leads
Dimension 0.264" L x 0.055" W (6.70mm x 1.40mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Other Names 887-1860-2,887-1860-1,887-1860-6,9HT732768KDZFT
Standard Package 3,000
Win Source Part Number 977570-9HT7-32.768KDZF-T
Ultra Librarian 3D Model Ultra Librarian 9HT7-32.768KDZF-T CAD Model

Description

The 9HT7 series kHz crystal from TXC CORPORATION is a surface-mount crystal with a package of 4-SMD, Flat Leads.

  • Package: 4-SMD, Flat Leads
  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 12.5pF
  • Height: 0.055" (1.40mm)
  • Packaging: Tape and Reel
  • Quantity: 3000
  • ECCN: EAR99
  • HTSUS Code: 8541.60.0010
