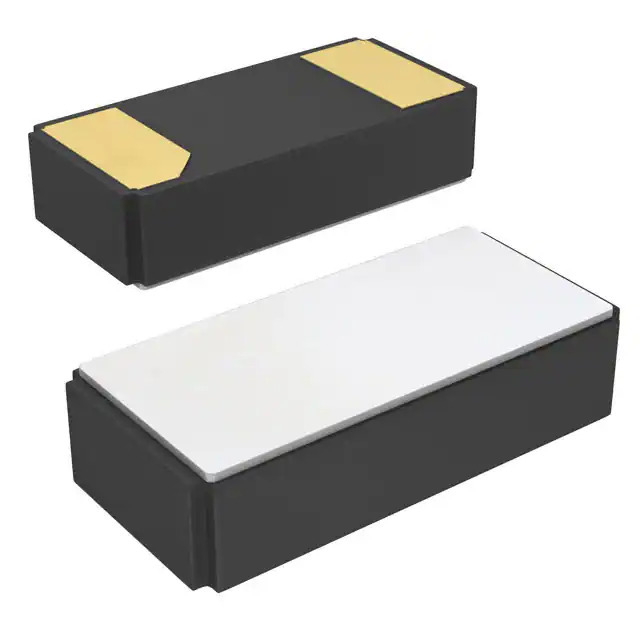

9H03200033 TXC CORPORATION
Same model may have multiple batches, images only for reference.

9H03200033

Part No 9H03200033
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 9PF SMD / 32.768 kHz ±20ppm Crystal 9pF 70 kOhms 2-SMD, No Lead
Datasheet
9H03200033 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 9HT10
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Stability -
Frequency Tolerance ±20ppm
Load Capacitance 9pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.033" (0.85mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1366362-9H03200033
Ultra Librarian 3D Model Ultra Librarian 9H03200033 CAD Model

Description

The 9H03200033 is a 32.768kHz crystal (tuning fork) from TXC Corporation.

  • Frequency: 32.768kHz
  • Type: Crystal
  • Series: 9HT10
  • Package / Case: 2-SMD, No Lead
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 85°C
  • Size / Dimension: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Height - Seated (Max): 0.033" (0.85mm)
  • Frequency Tolerance: ±20ppm
  • ESR (Equivalent Series Resistance): 70 kOhms
