Same model may have multiple batches, images only for reference.

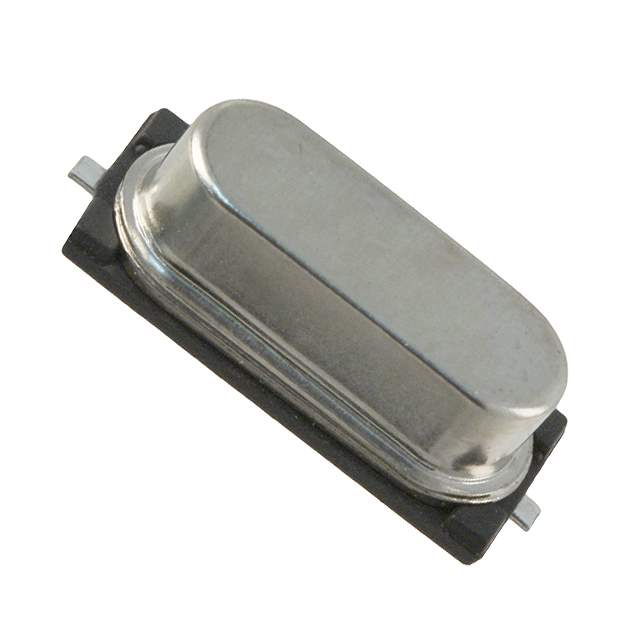

9C16300003 Real Image
Same model may have multiple batches, images only for reference.

9C16300003

Part No 9C16300003
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 16.367660MHZ 10PF SMD
Datasheet
9C16300003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Series 9C
Packaging Reel package
Type MHz Crystal
Frequency 16.36766MHZ
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 30 Ohm
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package HC49/US
Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Maximum) 0.161" (4.10mm)
Win Source Part Number 766149-9C16300003
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 9C16300003 CAD Model

Description

The TXC CORPORATION 9C16300003 is an electronic component in the crystal, oscillators, and resonators category.

  • Frequency: 16.36766MHZ
  • ESR: 30 Ohm
  • Frequency Stability/Tolerance: ±50ppm
  • Load Capacitance: 10pF
  • Package: Reel
  • Mounting: SMD
