Same model may have multiple batches, images only for reference.

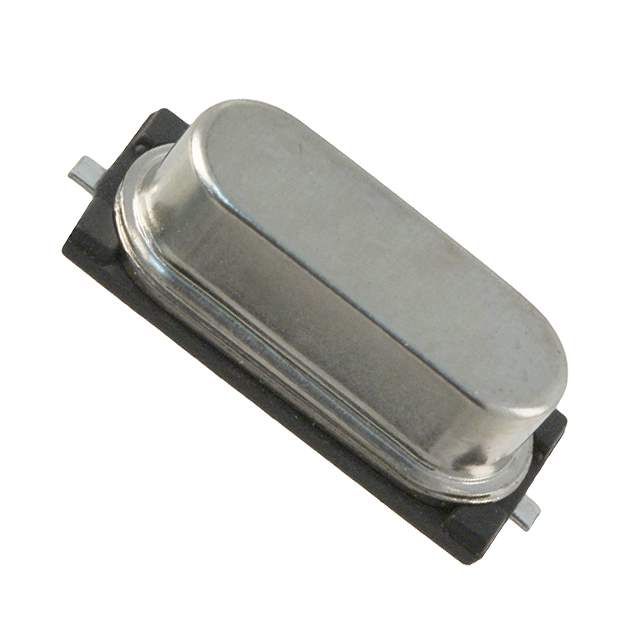

9C-24.000MAAE-T Real Image
Same model may have multiple batches, images only for reference.

9C-24.000MAAE-T

Part No 9C-24.000MAAE-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 24.0000MHZ 12PF SMD / 24 MHz ±30ppm Crystal 12pF 30 Ohms HC-49S
Datasheet
9C-24.000MAAE-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 9C
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case HC-49S
Size / Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.161" (4.10mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1348103-9C-24.000MAAE-T
Ultra Librarian 3D Model Ultra Librarian 9C-24.000MAAE-T CAD Model

Description

The 9C series MHz crystal is a high-quality crystal oscillator that is ideal for use in a wide range of electronic devices.

  • Frequency: 24 MHz
  • ESR (Equivalent Series Resistance): 30 Ohms
  • Frequency Stability: ±30ppm
  • Mode: Fundamental
  • Mounting Type: Surface Mount
  • Package / Case: HC-49S
  • Operating Temperature: -20°C ~ 70°C
  • Packaging: Tape & Reel
  • Lifecycle Status: Obsolete
