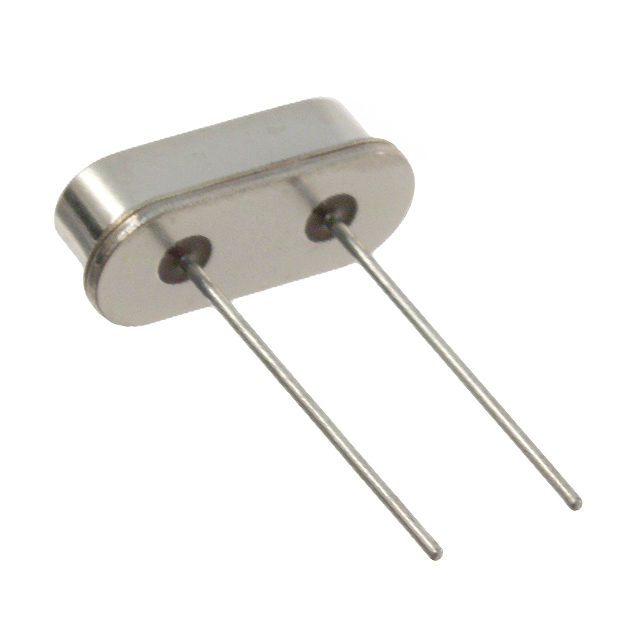

Same model may have multiple batches, images only for reference.
9C-22.000MAAJ-T TXC CORPORATION – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9C-22.000MAAJ-T

Part No 9C-22.000MAAJ-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 22.0000MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Type MHz Crystal
Frequency 22 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Case / Package HC-49/US
Supplier Device Package HC-49S
Size / Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.161\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1528583-9C-22.000MAAJ-T
Ultra Librarian 3D Model Ultra Librarian 9C-22.000MAAJ-T CAD Model
