Same model may have multiple batches, images only for reference.

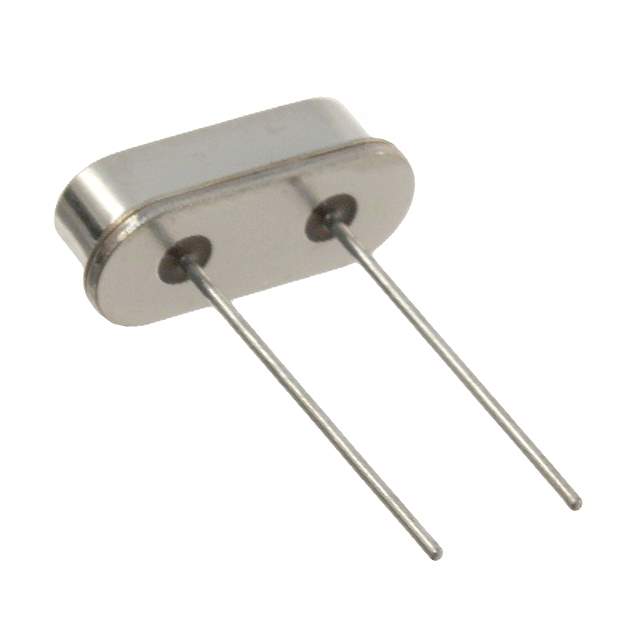

9B-8.000MAAJ-B Real Image
Same model may have multiple batches, images only for reference.

9B-8.000MAAJ-B

Part No 9B-8.000MAAJ-B
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 8.0000MHZ 18PF TH / 8 MHz ±30ppm Crystal 18pF 80 Ohms HC-49/US
Datasheet
9B-8.000MAAJ-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 9B
Package Bulk
Product Status Obsolete
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Size / Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.145" (3.68mm)
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1338847-9B-8.000MAAJ-B
Ultra Librarian 3D Model Ultra Librarian 9B-8.000MAAJ-B CAD Model

Description

The TXC CORPORATION 1338847-9B-8.000MAAJ-B MHz crystal is a through-hole component that measures 0.453 inches in length and 0.197 inches in width.

  • Frequency: 8 MHz
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • ESR: 80 Ohms
  • Operating Temperature: -20°C to 70°C
  • Mounting Type: Through Hole
  • Package/Case: HC-49/US
  • Height-Seated Maximum: 0.145 inches
  • Status: Obsolete
  • ECCN: EAR99
