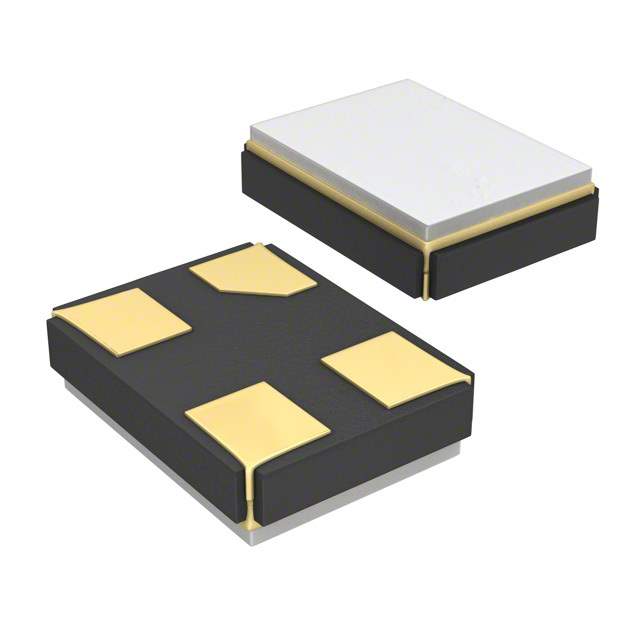

8Q37470001 Real Image
Same model may have multiple batches, images only for reference.

8Q37470001

Part No 8Q37470001
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 37.4000MHZ 16PF SMD / 37.4 MHz ±10ppm Crystal 16pF 80 Ohms 4-SMD, No Lead
Datasheet
8Q37470001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer TXC CORPORATION
Packaging Reel - TR
Type MHz Crystal
Frequency 37.4 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 16pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -30°C ~ 85°C
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.016" (0.40mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Standard Package 5,000
Win Source Part Number 1328385-8Q37470001
Ultra Librarian 3D Model Ultra Librarian 8Q37470001 CAD Model

Description

The 8Q series crystal from TXC CORPORATION is a 4-SMD, no-lead crystal with a frequency of 37.4 MHz.

  • Frequency Tolerance: ±10ppm
  • Frequency Stability: ±10ppm
  • Packaging: reel-TR
  • Mounting: Surface Mount
  • ESR: 80 Ohms
  • Load Capacitance: 16pF
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8541.60.0060
