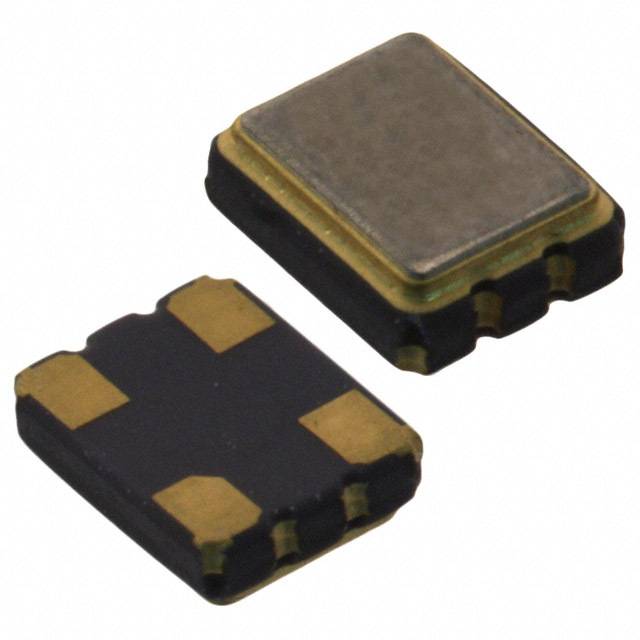

Same model may have multiple batches, images only for reference.
7X25020004 TXC CORPORATION
Same model may have multiple batches, images only for reference.

7X25020004

Part No 7X25020004
Manufacturer TXC CORPORATION
Catalog Oscillators
Description OSC XO 25MHZ 1.0V SMD
Datasheet
7X25020004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Packaging Reel - TR
Status Active
Type XO (Standard)
Frequency 25MHz
Purpose Enable/Disable
Output CMOS
Supply Voltage - Operating 1V
Frequency Stability ±20ppm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.040" (1.02mm)
Win Source Part Number 1118106-7X25020004
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7X25020004 CAD Model

Description

The TXC Corporation 1118106-7X25020004 is a high-quality XO (Standard) that is designed to offer excellent performance in a wide range of applications. Bold the product name (e.g., 1118106-7X25020004) and manufacturer (e.g., TXC Corporation).

  • Type: XO (Standard)
  • Frequency: 25MHz
  • Output: CMOS
  • Temperature Range: -40°C to 85°C
  • Package: Standard SMD
  • Height: 0.040" (1.02mm)
  • Supply Voltage: 1V
  • Status: Active
  • Frequency Stability: ±20ppm
