Same model may have multiple batches, images only for reference.

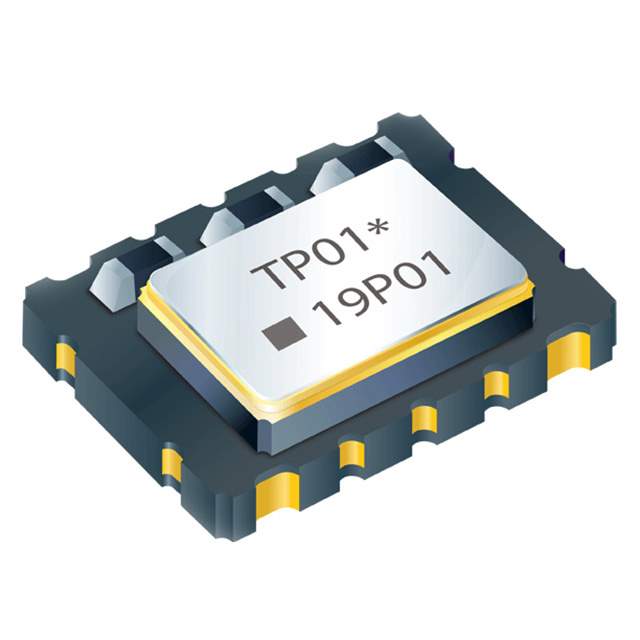

7N19471003 Real Image
Same model may have multiple batches, images only for reference.

7N19471003

Part No 7N19471003
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC TCXO 19.44MHZ 3.3V CMOS / 19.44 MHz TCXO CMOS Oscillator 3.3V 10-SMD, No Lead
Datasheet
7N19471003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr TXC CORPORATION
Series 7N
Package Strip
Base Resonator Crystal
Type TCXO
Frequency 19.44 MHz
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±250ppb
Temperature Range - Operating -40°C ~ 105°C
Current - Supply (Max) 6mA
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.067" (1.70mm)
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Win Source Part Number 1339317-7N19471003
Ultra Librarian 3D Model Ultra Librarian 7N19471003 CAD Model

Description

The TXC CORPORATION 1339317-7N19471003 is a 19.44 MHz TCXO oscillator with a CMOS output.

  • Output: CMOS
  • Package / Case: 10-SMD, No Lead
  • Packaging: Strip
  • Size / Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height - Seated (Max): 0.067" (1.70mm)
  • Frequency Stability: ±250ppb
  • Current - Supply (Max): 6mA
  • Voltage - Supply: 3.3V
  • Operating Temperature: -40°C ~ 105°C
  • Base Resonator: Crystal
  • REACH Status: Unaffected
