Same model may have multiple batches, images only for reference.

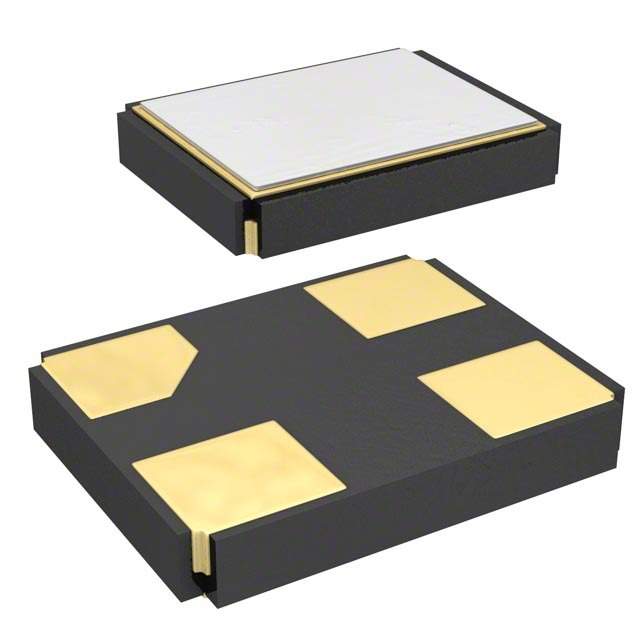

7L16303002 Real Image
Same model may have multiple batches, images only for reference.

7L16303002

Part No 7L16303002
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC TCXO 16.3690MHZ SNWV / 16.369 MHz TCXO Clipped Sine Wave Oscillator 2.8V 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr TXC CORPORATION
Series 7L
Package Tape & Reel (TR)
Base Resonator Crystal
Type TCXO
Frequency 16.369 MHz
Output Clipped Sine Wave
Voltage - Supply 2.8V
Frequency Stability ±2ppm
Temperature Range - Operating -30°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 1040932-7L16303002
Ultra Librarian 3D Model Ultra Librarian 7L16303002 CAD Model

Description

The 16.369 MHz TCXO crystal by TXC CORPORATION is a high-quality component that is perfect for use in a wide range of electronic applications.

  • Series: 7L
  • Package: Tape & Reel (TR)
  • Mounting: Surface Mount
  • Category: Crystals, Oscillators, Resonators
  • Type: TCXO
  • Height - Seated (Max): 0.031" (0.80mm)
  • Standard Package: 3,000
  • Frequency: 16.369 MHz
  • Output: Clipped Sine Wave
  • Frequency Stability: ±2ppm
  • Voltage Supply: 2.8V
  • Package/Case: 4-SMD, no lead
  • Temperature Range - Operating: -30°C ~ 85°C
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • MSL Level: 1 (unlimited)
  • Base Resonator: Crystal
  • REACH Status: REACH unaffected
  • HTSUS: 8542.39.0001
