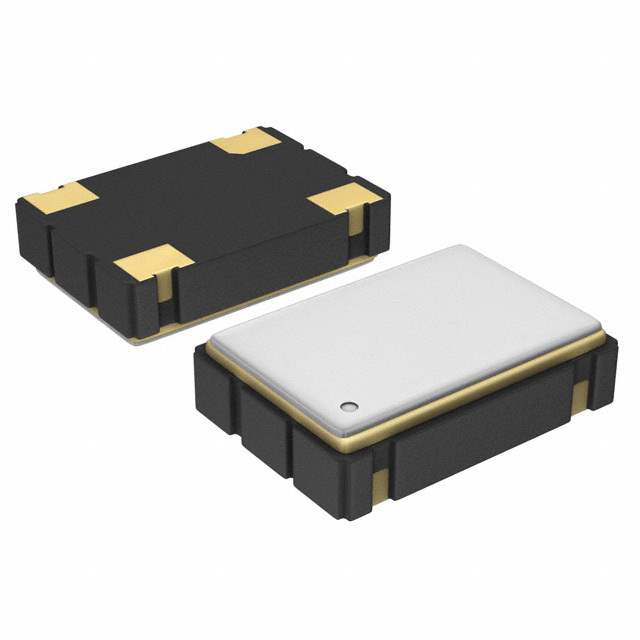

7C40000290 Real Image
Same model may have multiple batches, images only for reference.

7C40000290

Part No 7C40000290
Manufacturer TXC CORPORATION
Catalog Oscillators
Description OSC XO 40MHZ 1.8V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr TXC CORPORATION
Series 7C
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 40 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.8V
Current - Supply (Max) 5mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.055" (1.40mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1142547-7C40000290
Ultra Librarian 3D Model Ultra Librarian 7C40000290 CAD Model

Description

The 1142547-7C40000290 is an oscillator component from the 7C series.

  • Oscillator Type: XO (Standard)
  • Frequency: 40 MHz
  • Packaging: Tape and Reel
  • Standard Package: 1000 pieces
  • Output: CMOS
  • Supply Voltage: 1.8V
  • Supply Current (Max): 5mA
  • Function: Enable/Disable
  • Mounting Type: Surface Mount
  • Status: Active
