Same model may have multiple batches, images only for reference.

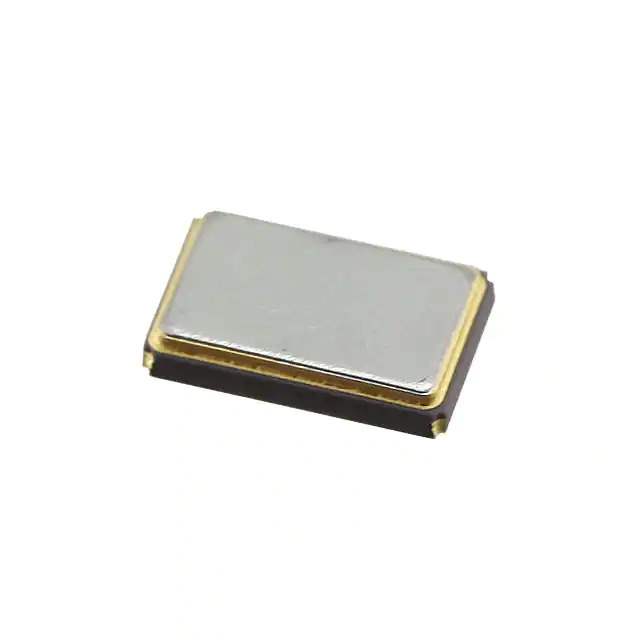

7B-25.000MBBK-T Real Image
Same model may have multiple batches, images only for reference.

7B-25.000MBBK-T

Part No 7B-25.000MBBK-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 25.0000MHZ 20PF SMD / 25 MHz ±50ppm Crystal 20pF 40 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 7B
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.041" (1.05mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 858275-7B-25.000MBBK-T
Ultra Librarian 3D Model Ultra Librarian 7B-25.000MBBK-T CAD Model

Description

The 858275-7B-25.000MBBK-T is a MHz Crystal from the 7B series.

  • Series: 7B
  • Package: 4-SMD, No Lead
  • Dimensions: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Seated Height: 0.041" (1.05mm)
  • Frequency: 25 MHz
  • ESR (Equivalent Series Resistance): 40 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±50ppm
  • Load Capacitance: 20pF
  • Operating Mode: Fundamental
  • Mounting: Surface Mount
  • Temperature Range: -20°C to 70°C
  • Status: Obsolete
