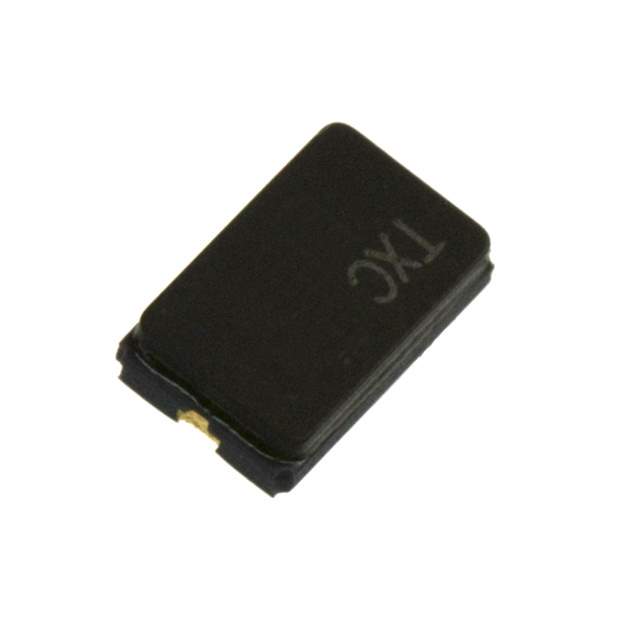

7A12000026 Real Image
Same model may have multiple batches, images only for reference.

7A12000026

Part No 7A12000026
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 12MHZ 16PF SMD
Datasheet
7A12000026 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Series 7A
Packaging Reel package
Type MHz Crystal
Frequency 12MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 16pF
Operating Temperature Range -10°C ~ 70°C
Mounting SMD
Package 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Maximum) 0.053" (1.35mm)
Win Source Part Number 766217-7A12000026
Popularity Medium
Supply and Demand Status Limited
Introduction Date October 14, 2011
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 7A12000026 CAD Model

Description

The 7A12000026 from TXC CORPORATION is a 12MHz crystal oscillator with a frequency tolerance of ±30ppm. This product is designed to be used in electronic devices that require precise timing and frequency control.
