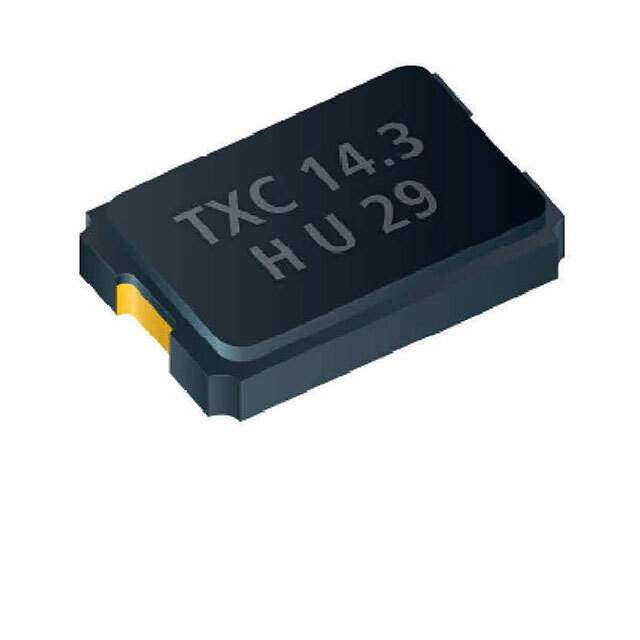

7A-12.000MAAJ-T Real Image
Same model may have multiple batches, images only for reference.

7A-12.000MAAJ-T

Part No 7A-12.000MAAJ-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series 7A
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
Other Names 3003-7A-12.000MAAJ-T,887-1081-6,887-1081-1,7A12000MAAJT,887-1081-2
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1284981-7A-12.000MAAJ-T
Ultra Librarian 3D Model Ultra Librarian 7A-12.000MAAJ-T CAD Model

Description

The TXC CORPORATION 7A series MHz Crystal with a frequency of 12 MHz and an ESR of 80 Ohms is a surface mount device (SMD) type component.

  • Frequency: 12 MHz
  • ESR (Equivalent Series Resistance): 80 Ohms
  • Mounting Type: Surface Mount Device (SMD)
  • Package / Case: 2-SMD, No Lead
  • Packaging: Tape & Reel
  • Dimension: 0.197 inches (5.00mm) L x 0.126 inches (3.20mm) W
  • Height - Seated (Max): 0.053 inches (1.35mm)
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±30ppm
  • Operating Temperature: -20°C ~ 70°C
  • Load Capacitance: 18pF
  • ECCN: EAR99
  • Lifecycle Status: Obsolete
