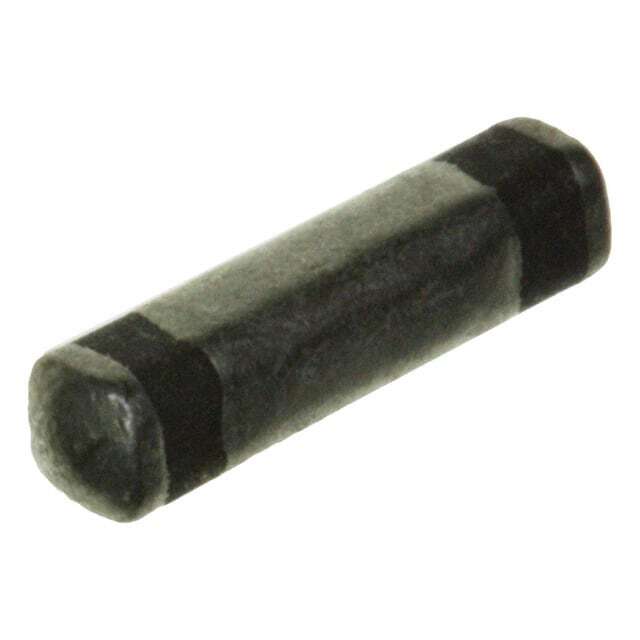

Same model may have multiple batches, images only for reference.
4701-002MLF
Same model may have multiple batches, images only for reference.

4701-002MLF

Part No 4701-002MLF
Manufacturer Tusonix a Subsidiary of CTS Electronic Components
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 0.1UH/6800PF SMD / LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 0.1μH, C = 6800pF 10 A Pill, Square
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr Tusonix a Subsidiary of CTS Electronic Components
Series 4700
Package Tape & Reel
Product Status Active
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Attenuation Value 60dB @ 100MHz
Current 10 A
Values L = 0.1µH, C = 6800pF
ESD Protection No
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Voltage - Rated 100V
Mounting Type Surface Mount
Package / Case Pill, Square
Size / Dimension 0.394" L x 0.090" W (10.00mm x 2.29mm)
Height 0.095" (2.41mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 856120-4701-002MLF
Ultra Librarian 3D Model Ultra Librarian 4701-002MLF CAD Model

Description

The 856120-4701-002MLF is an EMI/RFI filter designed for use in electronic devices.

  • Category: Filters - EMI/RFI Filters (LC, RC Networks)
  • Filter Type: Low Pass
  • Mounting Type: Surface Mount
  • Package: Pill, Square
  • Size: 0.394" L x 0.090" W (10.00mm x 2.29mm)
  • Height: 0.095" (2.41mm)
  • Voltage Rating: 100V
  • Current Rating: 10A
  • Attenuation: 60dB @ 100MHz
  • Filter Order: 3rd
  • Application: General Purpose
  • Standard Package: 2,000 pcs
  • Manufacturer: Tusonix (CTS Electronic Components)
  • Product Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
