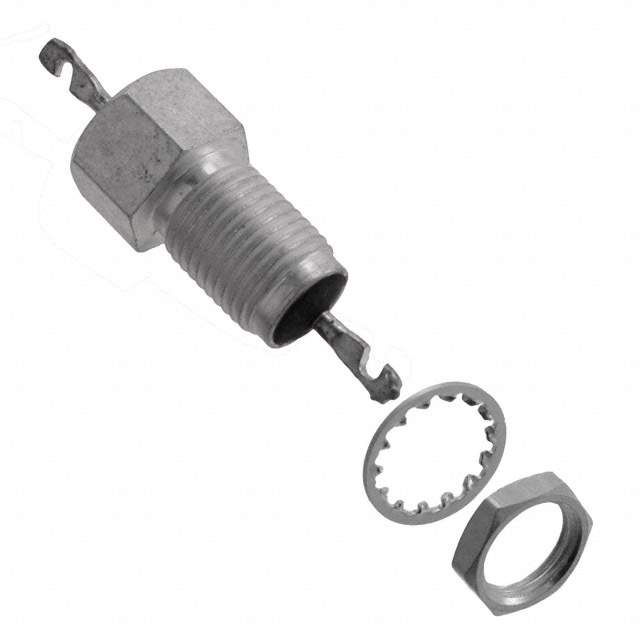

4206-006LF Real Image
Same model may have multiple batches, images only for reference.

4206-006LF

Part No 4206-006LF
Manufacturer Tusonix a Subsidiary of CTS Electronic Components
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 3000PF CHASSIS / LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 3000pF 25 A Axial, Bushing - 2 Notched Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr Tusonix a Subsidiary of CTS Electronic Components
Series 4200
Package Bulk
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Attenuation Value 55dB @ 100MHz
Current 25 A
Values C = 3000pF
ESD Protection No
Temperature Range - Operating -55°C ~ 125°C
Applications Data Lines for Mobile Devices
Voltage - Rated 500V
Mounting Type Chassis Mount
Package / Case Axial, Bushing - 2 Notched Leads
Dimension 0.375" Dia x 0.687" L (9.52mm x 17.44mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 4206006LF,410-1086
Standard Package 100
Win Source Part Number 1232005-4206-006LF
Ultra Librarian 3D Model Ultra Librarian 4206-006LF CAD Model

Description

The Tusonix 4200 series low pass EMI/RFI filter is a chassis-mounted filter designed for use in data lines for mobile devices.

  • Series: 4200
  • Filter Type: Low Pass EMI/RFI
  • Mounting Type: Chassis Mount
  • Application: Data Lines for Mobile Devices
  • Voltage Rating: 500V
  • Current Rating: 25A
  • Attenuation: 55dB @ 100MHz
  • Filter Order: 3rd Order
  • Cutoff Frequency: 0.1MHz
  • Technology: LC (Pi)
  • Capacitance: 3000pF
  • RoHS Compliant: Yes
  • Temperature Range: -55°C to 125°C
