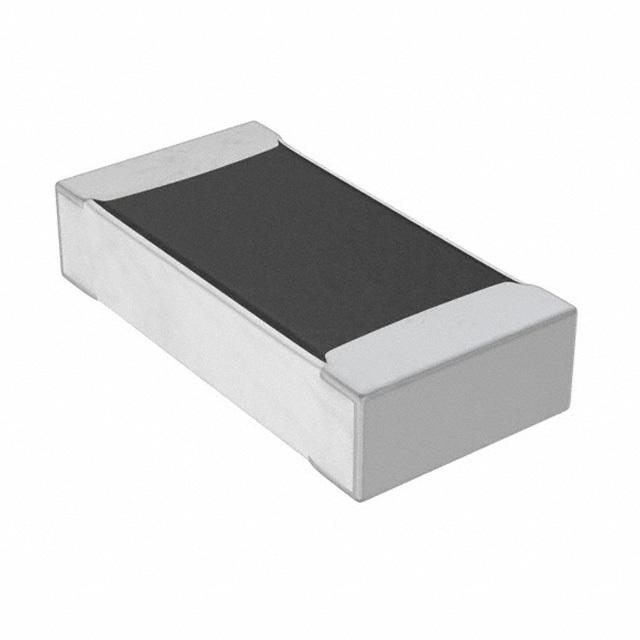

Same model may have multiple batches, images only for reference.
LRC-LRF2512LF-01-R020F TT Electronics
Same model may have multiple batches, images only for reference.

LRC-LRF2512LF-01-R020F

Part No LRC-LRF2512LF-01-R020F
Manufacturer TT Electronics
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.02 OHM 1% 2W 2512
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TT Electronics/IRC
Packaging Reel - TR
Resistance (Ohms) 0.02
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient 300ppm/°C
Temperature Range - Operating -55°C to 150°C
Case / Package 2512
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Win Source Part Number 129769-LRC-LRF2512LF-01-R020F
Ultra Librarian 3D Model Ultra Librarian LRC-LRF2512LF-01-R020F CAD Model

Description

The LRF2512LF-01-R020F by TT Electronics/IRC is a thick film automotive AEC-Q200 compliant current sense resistor.

  • Tolerance: ±1%
  • Temperature Coefficient: 300ppm/°C
  • Power Rating: 2W
  • Resistance: 0.02 Ohms
  • Moisture Resistance: Yes
  • Temperature Range: -55°C to 150°C
  • Package: 2512
  • Terminations: 2
